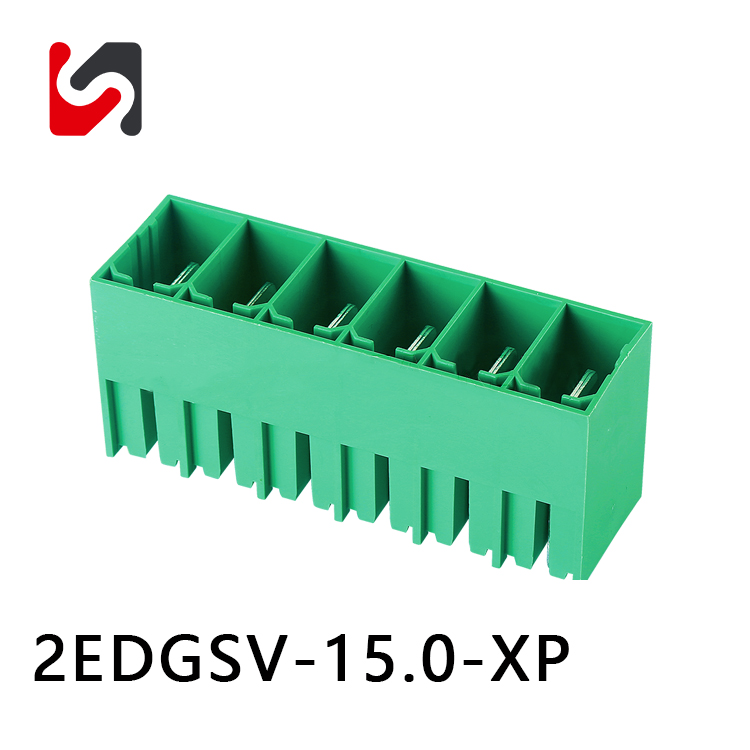

KF2EDGSV-15.0
KEFA
SHSY-000230
0.2-6.0
Pluggable
PA66plastic,UL94V-0 ,Copper alloy
Green,Black,other color can custom
| Pitch: | |
|---|---|
| poles: | |
| Package/QTY: | |
| Protection class (plug): | |
| LTY: | |
| MOQ: | |
| Payment Terms: | |
| Quantity: | |
Product Specifications
Phoenix Contact replacement KF2EDGSV
compatible with Phoenix pluggable terminal
alternative to Phoenix Contact ST 15.0
KF2EDGSV equivalent terminal block
Phoenix ST series alternative 15mm
generic pluggable terminal block for Phoenix
cross reference KF2EDGSV-15.0
| Pitch | 15.0mm |
| Poles | 2P-10P |
| Number of Contacts | 2-24 |
| Rated voltage | 600V |
| Reated current | 115A |
| Pin Dimensions) [mm | 3.7 |
| Temperature range | -40°C~+105°C |
| (Impulse wiithstand voltagea) [KV] | 2.5 |
| Supply Ability | 100000 Piece/ per Week |
| Stripping Length) [mm] | 15-16 |
| Contactive Coating | Tin Plated |
| Withstanding VoltagWithstanding Voltag | 2200V/1Min |
| PCB Hole Diameter) [mm] | 1.4 |
Product Application
industrial controls
lamp lighting
instrumentation
consumer electronics telecom equipment
transportation
Drawing
Package Details
pcb terminal connector manufacturer, Pluggable Terminal Blocks: Inner Box first , then Inner Carton, The last, Export Carton.
Take strong bags/boxes/cartons for the package, in order to reduce the damage during the shipments. Tape and reel packing, Clamshell packing, Pallet packing, etc are available.
Export Carton size:43*27*27/36CM
Port: NINGBO/SHANGHAI
FAQ
Q: The nature of the company (factory/trading)?
A: Integrated industry and trade.
Q: Packing details of the product?
A: Use a special export carton, which is stronger, and the weight of a single piece does not exceed 25KG (by air).
Q: The customs code of the product?
A: 8536901900.
Q: The mass production time of the product?
A: Usually 2 weeks - 4 weeks.
Q: Is the sample provided for free, and the sample delivery date?
A: Small amount samples can be given away for free, and samples can be delivered within 3-5 days.
Q: Does the product support OEM customization?
A: YES.
Q: Do you support MOQ?
A: YES.
Q: Is there a product quotation or electronic sample catalog?
A: Customers need it at any time and can provide it at any time.
Q: Does the company have quality control standards and corresponding management systems?
A: Of course.
SHIPMENTS
