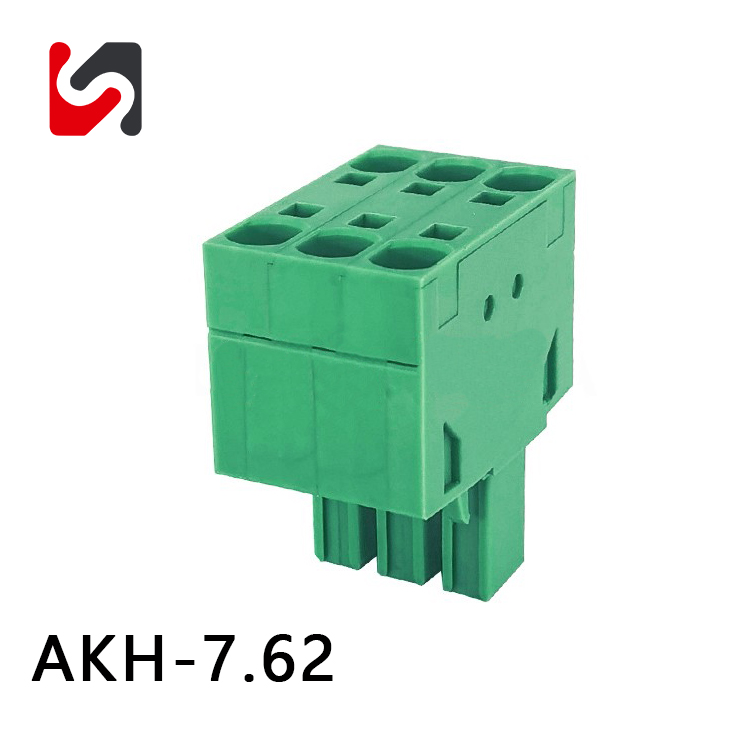

Pluggable Terminal Block Connectors

  • 2EDGAKH-7.62

  • SHAN YE

  • SHSY-0001

  • 0.2-6.0

  • Pluggable

  • PA66plastic,UL94V-0 ,Copper alloy

  • M2.5/0.4

  • Green,other color can custom

poles:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Specifications

Pitch 7.62mm
Poles 2P-16P
Number of Contacts 2-24
Rated voltage 600V
Reated current 31A
Wire range 24-8AWG
Temperature range -40°C~+105°C
Conductor cross section(Solid/flexible)  (mm²)

2.5

Supply Ability 100000 Piece/ per Week
Stripping Length) [mm] 15-16
Contactive Coating Tin Plated

AKH-7.62.pdf

Product Application

  • industrial controls

  • lamp lighting

  • instrumentation

  • consumer electronics telecom equipment

  • transportation


Package Details

  • Pluggable Terminal Blocks: Inner Box first , then  Inner Carton, The last, Export Carton.

Take strong bags/boxes/cartons for the package, in order to reduce the damage during the shipments. Tape and reel packing, Clamshell packing, Pallet packing, etc are available.

  • Export Carton size:43*27*27/36CM

  • Port: NINGBO/SHANGHAI


FAQ

Q: The nature of the company (factory/trading)?

A: Integrated industry and trade.


Q: Packing details of the product?

A: Use a special export carton, which is stronger, and the weight of a single piece does not exceed 25KG (by air).


Q: The customs code of the product?

A: 8536901900.


Q: The mass production time of the product?

A: Usually 2 weeks - 4 weeks.


Q: Is the sample provided for free, and the sample delivery date?

A: Small amount samples can be given away for free, and samples can be delivered within 3-5 days.


Q: Does the product support OEM customization?

A: YES.


Q: Do you support MOQ?

A: YES.


Q: Is there a product quotation or electronic sample catalog?

A: Customers need it at any time and can provide it at any time.


Q: Does the company have quality control standards and corresponding management systems?

A: Of course.
