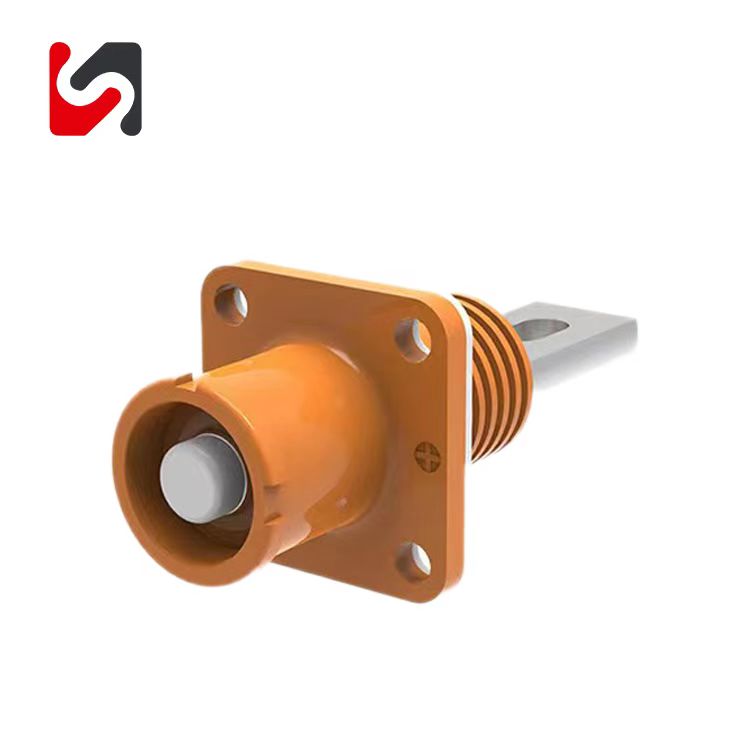

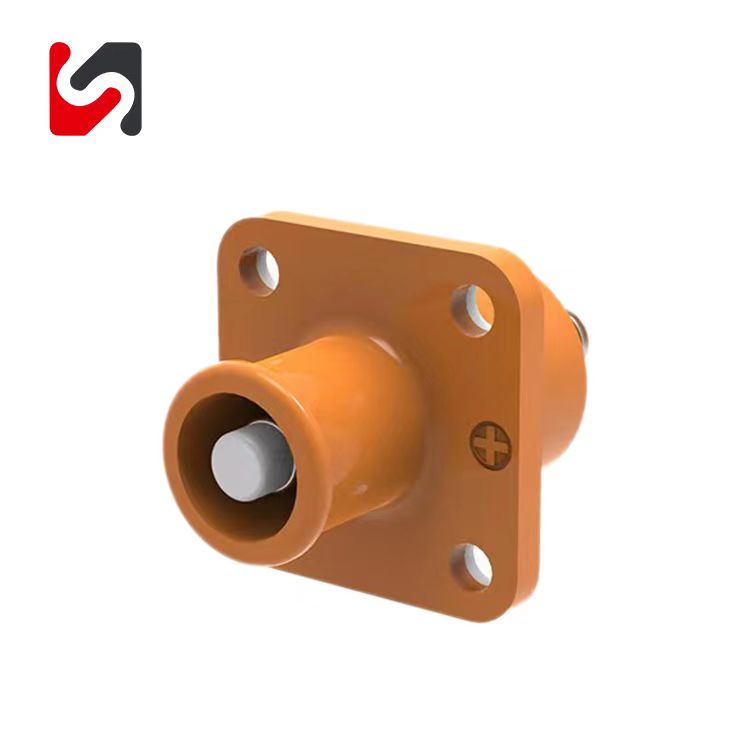

ESS-100A-16-S-OR-00-20160003077
SHAN YE
SHSY-000472
SCREW
PA66plastic,UL94V-0 ,Copper alloy
orange
| Quantity: | |
|---|---|
Product Specifications
1,Number of connections 1
2,The outer diameter of the cable ranges from 4.9 mm to 6.0mm
3,The strip length of the cable is 7 mm to 8mm
4,Connection mode crimping
Cable cross-sectional area 10AWG(6mm²)
5,Environmental conditions
Protection level (Plug) IP67
Altitude 2000m
Ambient temperature: -40°C to +125°C
Ambient temperature (storage/transportation) -40°C to +80°C
Mechanical characteristics
6,Insert and remove 100 times
7,Insertion force <60N
Pull-out capacity >10N
8,Standards and specifications
Standard/specification certification (UL4128 and TUV)
Material data
9,Clamping ring material silicone
O-ring material silica gel
Halogen-free coincidence
10,Environmental matters comply with REACH/RoHS
11,The contact material is copper alloy
Insulating material nylon
12,Case Color Orange
13,Flame retardant grade UL94V-0
Electrical parameter
14,Rated current 50A
Rated voltage 1000V
15,Pollution level 3
Insulation resistance >5000MΩ
Contact resistance ≤0.5mΩ
Product Application
industrial controls
lamp lighting
instrumentation
consumer electronics telecom equipment
transportation
Package Details
Pluggable Terminal Blocks: Inner Box first , then Inner Carton, The last, Export Carton.
Take strong bags/boxes/cartons for the package, in order to reduce the damage during the shipments. Tape and reel packing, Clamshell packing, Pallet packing, etc are available.
Export Carton size:43*27*27/36CM
Port: NINGBO/SHANGHAI
FAQ
Q: The nature of the company (factory/trading)?
A: Integrated industry and trade.
Q: Packing details of the product?
A: Use a special export carton, which is stronger, and the weight of a single piece does not exceed 25KG (by air).
Q: The customs code of the product?
A: 8536901900.
Q: The mass production time of the product?
A: Usually 2 weeks - 4 weeks.
Q: Is the sample provided for free, and the sample delivery date?
A: Small amount samples can be given away for free, and samples can be delivered within 3-5 days.
Q: Does the product support OEM customization?
A: YES.
Q: Do you support MOQ?
A: YES.
Q: Is there a product quotation or electronic sample catalog?
A: Customers need it at any time and can provide it at any time.
Q: Does the company have quality control standards and corresponding management systems?
A: Of course.
