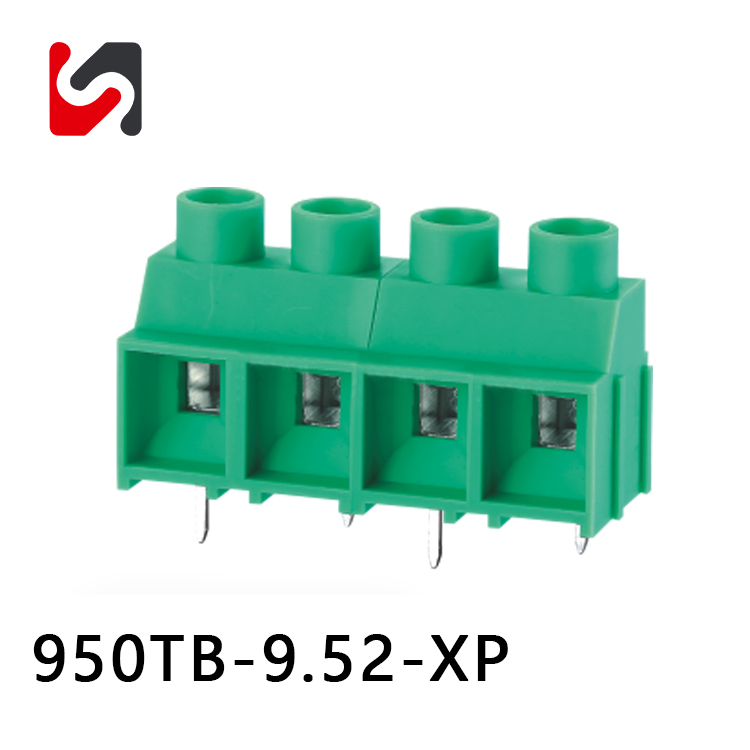

KF950TB-9.52
KEFA
SHSY-000466
0.2-6.0
SCREW
PA66plastic,UL94V-0 ,Copper alloy
M3.0/0.5
Green,Black,other color can custom
| Quantity: | |
|---|---|
Product Specifications
| Pitch | 9.52mm |
| Poles | 2P-24P |
| Number of Contacts | 2-24 |
| Rated voltage | 300V |
| Reated current | 30A |
| Pin Dimensions) [mm | 3.7 |
| Temperature range | -40°C~+105°C |
| (Impulse wiithstand voltagea) [KV] | 2.5 |
| Supply Ability | 100000 Piece/ per Week |
| Stripping Length) [mm] | 15-16 |
| Contactive Coating | Tin Plated |
| Withstanding VoltagWithstanding Voltag | 2200V/1Min |
| PCB Hole Diameter) [mm] | 1.4 |
PCB-mounted terminal blocks advantages and limitations
Product Application
industrial controls
lamp lighting
instrumentation
consumer electronics telecom equipment
transportation
Drawing
Package Details
Screw Terminal Blocks: Inner Box first , then Inner Carton, The last, Export Carton.
Take strong bags/boxes/cartons for the package, in order to reduce the damage during the shipments. Tape and reel packing, Clamshell packing, Pallet packing, etc are available.
Export Carton size:43*27*27/36CM
Port: NINGBO/SHANGHAI
FAQ
Q: The nature of the company (factory/trading)?
A: Integrated industry and trade.
Q: Packing details of the product?
A: Use a special export carton, which is stronger, and the weight of a single piece does not exceed 25KG (by air).
Q: The customs code of the product?
A: 8536901900.
Q: The mass production time of the product?
A: Usually 2 weeks - 4 weeks.
Q: Is the sample provided for free, and the sample delivery date?
A: Small amount samples can be given away for free, and samples can be delivered within 3-5 days.
Q: Does the product support OEM customization?
A: YES.
Q: Do you support MOQ?
A: YES.
Q: Is there a product quotation or electronic sample catalog?
A: Customers need it at any time and can provide it at any time.
Q: Does the company have quality control standards and corresponding management systems?
A: Of course.
SHIPMENTS
