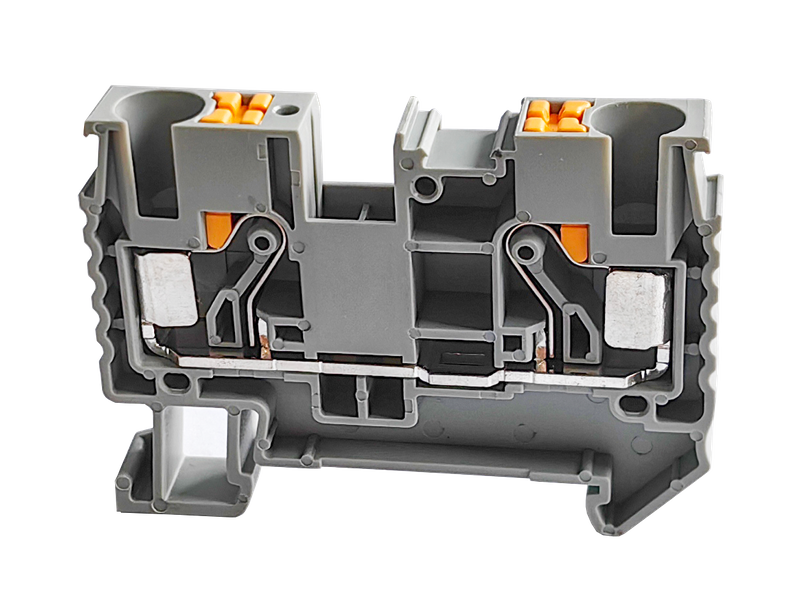

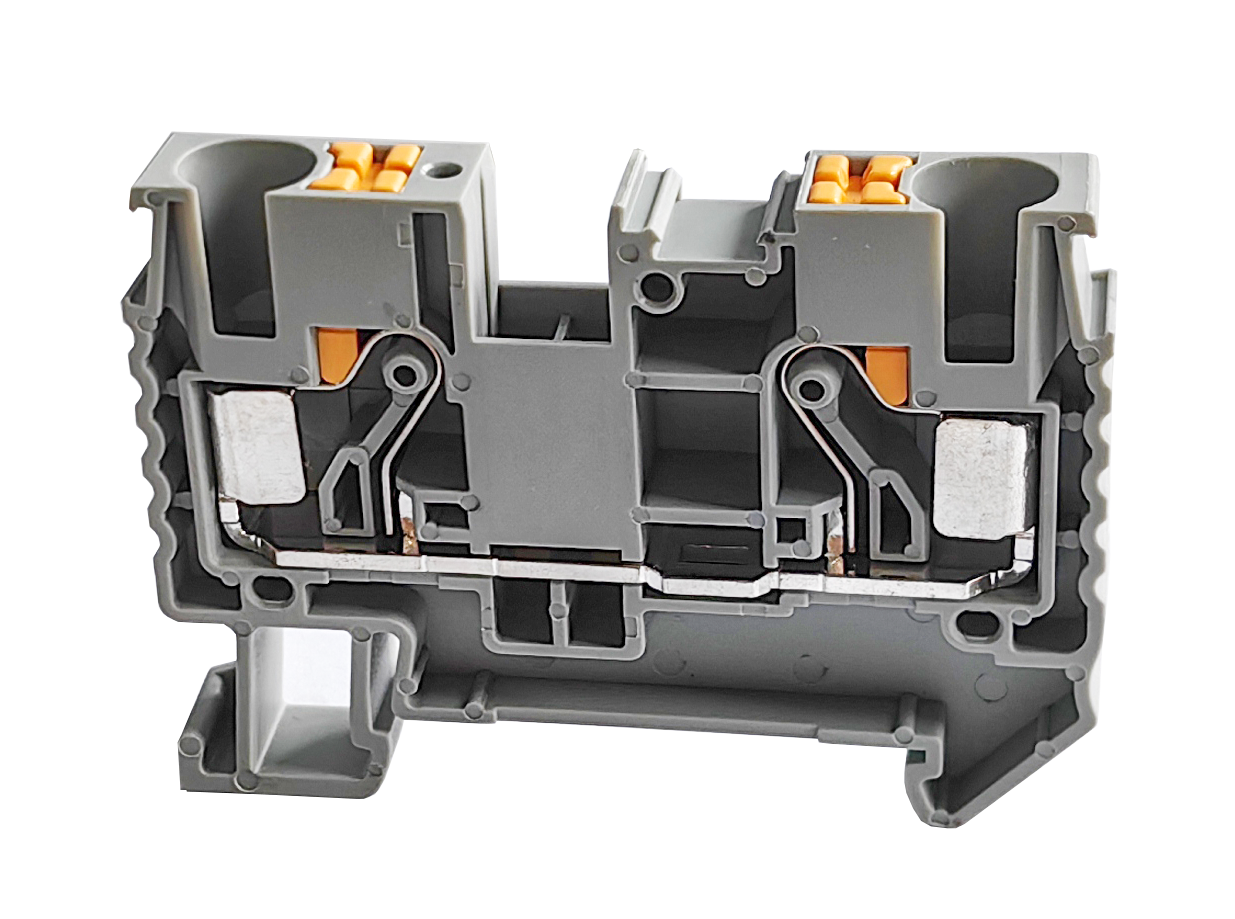

KFPT6011
KEFA
SHSY-000121
0.5-8（10sol）
din rail screw terminal block
PA66plastic,UL94V-0 ,Copper alloy
Green,Black,other color can custom
| Quantity: | |
|---|---|
Product Specifications
UL/CUL UL/CUL(Technical Data) |
| ||
Use Group | B | C | D |
Rated Voltage) [V] | 600 | 600 | 600 |
Rated Current) A | 50 | 50 | 5 |
Wire Range solid/Standed) [AWG] | 20-8 | ||
Withstanding Voltage | 2200V/1Min | ||
IEC(Technical Data) | |||
Overvoltage Category | ||| | ||
Contamination Class | 3 | ||
Rated Voltage) [V] | 1000 | ||
Rated Current) [A] | 41 | ||
Impulse wiithstand voltagea) [KV] | 8.0 | ||
Conductor cross section) Solid/flexible) [mm²] | 0.5-8（10sol） | ||
Material | |||
Insulation Material | PA66 | ||
Imflammability | UL94V-0 | ||
Contactor Material | Copper alloy) | ||
Contactive Coating | Tin Plated) | ||
Other Data | |||
Pitch) [mm] | 8.2 | ||
Poles) [P] | 01P | ||
Stripping Length) [mm] | 10~12 | ||
Screw) Torque Max) [N.m] | |||
Operating temperatur) [℃] | -40~+105 | ||
Pin Dimensions) [mm] | |||
P(PCB Hole Diameter) [mm] | |||

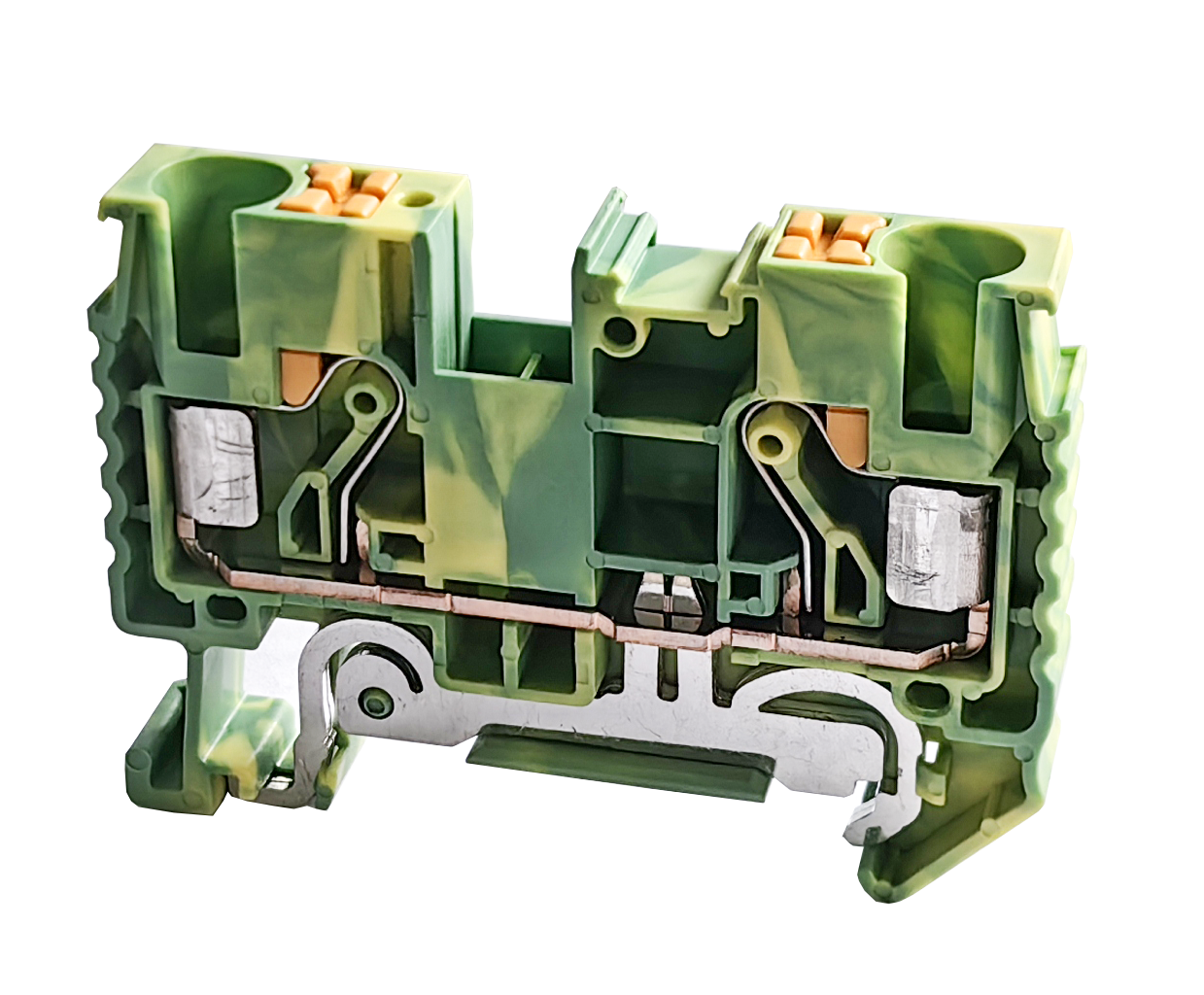

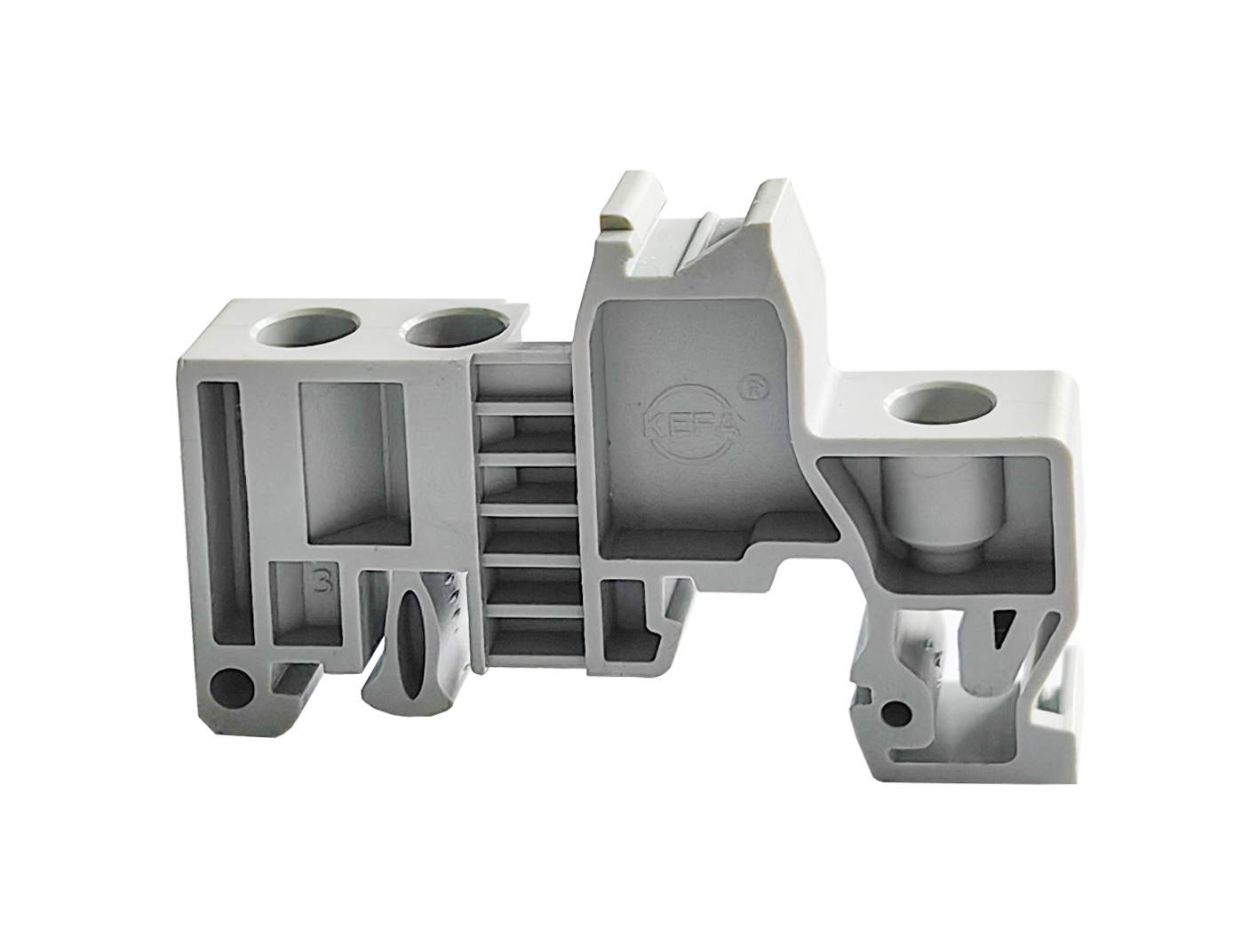

Related other Din Rail Terminal Block
Product Application
industrial controls
lamp lighting
instrumentation
consumer electronics telecom equipment
transportation
Drawing
Package Details
din rail screw terminal block: Inner Box first , then Inner Carton, The last, Export Carton.
Take strong bags/boxes/cartons for the package, in order to reduce the damage during the shipments. Tape and reel packing, Clamshell packing, Pallet packing, etc are available.
Export Carton size:43*27*27/36CM
Port: NINGBO/SHANGHAI
FAQ
Q: The nature of the company (factory/trading)?
A: Integrated industry and trade.
Q: Packing details of the product?
A: Use a special export carton, which is stronger, and the weight of a single piece does not exceed 25KG (by air).
Q: The customs code of the product?
A: 8536901900.
Q: The mass production time of the product?
A: Usually 2 weeks - 4 weeks.
Q: Is the sample provided for free, and the sample delivery date?
A: Small amount samples can be given away for free, and samples can be delivered within 3-5 days.
Q: Does the product support OEM customization?
A: YES.
Q: Do you support MOQ?
A: YES.
Q: Is there a product quotation or electronic sample catalog?
A: Customers need it at any time and can provide it at any time.
Q: Does the company have quality control standards and corresponding management systems?
A: Of course.
SHIPMENTS
