Terminal blocks (also known as terminal strips or connection terminals) are modular, insulated connectors that create secure electrical junctions between multiple wires or between wires and circuits. They serve as centralized, organized connection points in electrical panels, machinery, lighting, home appliance,and PLC control systems. Without them, electrical engineering projects would face chaos: unreliable connections, troubleshooting nightmares, and heightened safety risks.Then , do you really know ,how should you choose the right terminal blocks and how to install and use ? This article is explain the meaning of terminal block in electrical engineering.
Terminal blocks function as engineered bridges within circuits.
Physical Connection Mechanism:
Wires are inserted into the block’s metal terminals (often copper or brass for conductivity).
A clamping mechanism—screw-type, spring clamp, or push-in—secures the conductor. Screw types compress wires against a conductor bar; spring clamps use tension for vibration resistance; push-in designs enable tool-free installation.
Electrical Pathway Creation:Internally, conductive plates or bars link adjacent terminals, allowing current to flow between connected wires.In multi-layer blocks (triple-level CTL2.5UH), separate levels isolate signal, power, and ground lines to prevent interference.
Isolation and Safety:
Insulation walls separate terminals to prevent short circuits. For example, Tyco’s GelGuard technology seals connections against moisture and contaminants in telecom applications.
How should you choose the right terminal block?
As a high-quality of terminal block supplier, We’ll guide you through some key factors to consider when you selecting the perfect terminal block for your specific application.
1.Current Rating/Voltage rating
One of the most important factors to consider is the current rating of the terminal blocks. The current rating indicates the maximum amount of electrical current that the terminal block can safely carry without overheating or causing damage. It's crucial to choose a terminal block with a current rating that is higher than the maximum current expected in your application. For example, if your circuit is designed to carry a maximum current of 10 amps, you should select a terminal block with a current rating of at least 15 amps to provide a safety margin.Similar to the current rating, the voltage rating of the terminal block is also critical. The voltage rating specifies the maximum voltage that the terminal block can withstand without breaking down or causing electrical arcing. Make sure to choose a terminal block with a voltage rating that is appropriate for your application. For low - voltage applications, such as 12V or 24V DC circuits, a terminal block with a lower voltage rating may be sufficient.
The number of poles refers to the number of individual connection points on the terminal block. This is determined by the number of wires that need to be connected in your circuit. For example, if you need to connect two wires, you'll need a two - pole terminal block. Terminal blocks are available with a wide range of pole numbers, from 1pole to multi - pole configurations.
Terminal blocks can be mounted in different ways, depending on the application requirements. Common mounting styles include DIN - rail mounting, PCB mounting, and surface mounting.

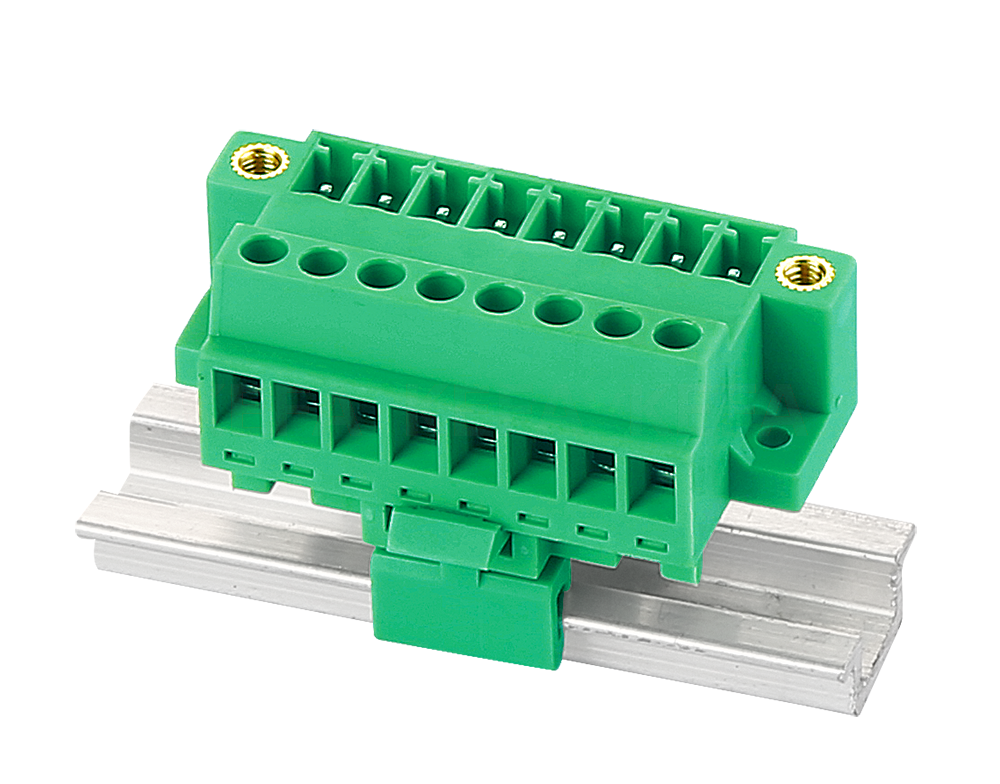

DIN - rail mounting: This is a popular choice in industrial applications. DIN - rail mounted terminal blocks can be easily installed and removed from a standard DIN rail, providing a flexible and modular solution for electrical installations.

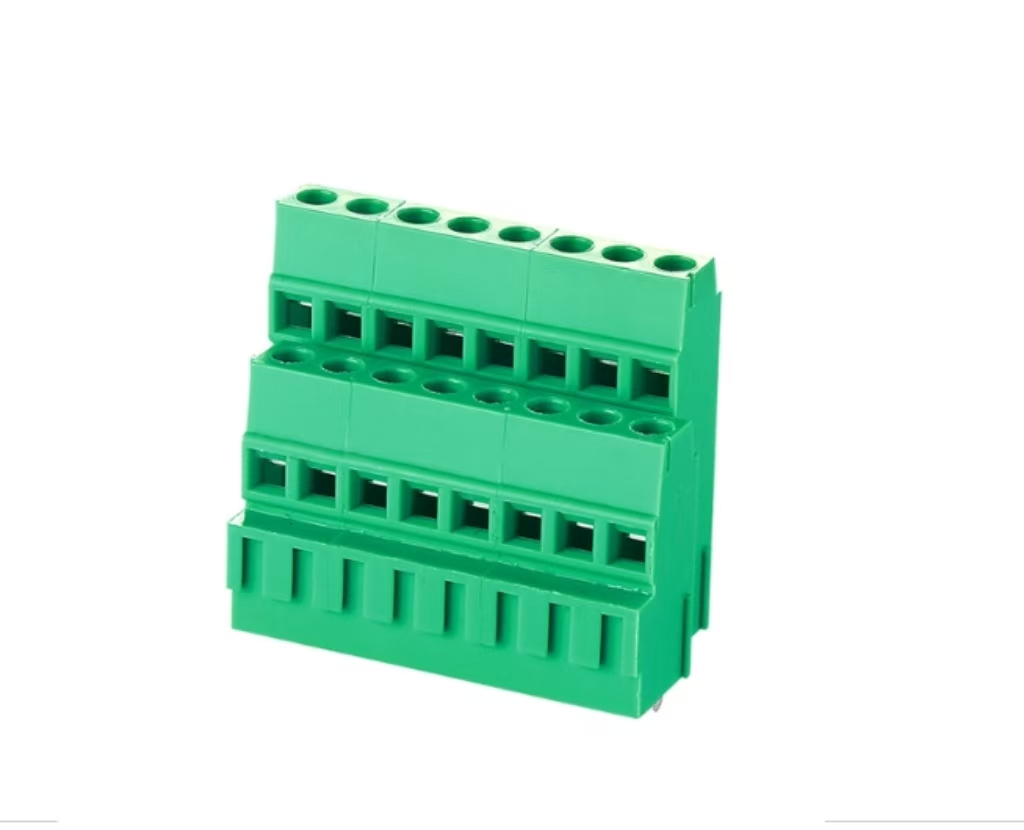

PCB mounting: Ideal for printed circuit boards, PCB terminal blocks are designed to be soldered directly onto the board. They are compact and space - efficient, making them suitable for electronic devices with limited space.
Barrier strip:Barrier strip terminal blocks, often simply called barrier strips, are insulated strips equipped with screw terminals for connecting wires. Each terminal sits within a separate compartment, insulated from its neighbors by plastic barriers

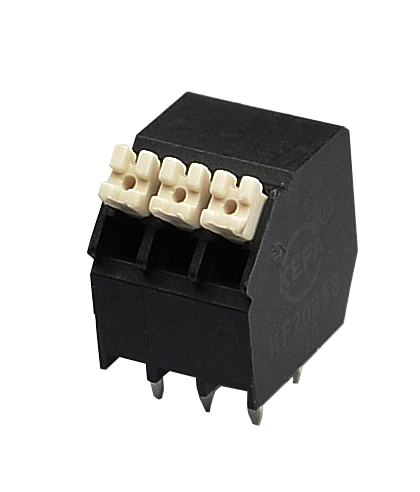

Surface mounting: Surface - mounted terminal blocks are attached directly to a flat surface, such as a panel or enclosure. They are often used in applications where a simple and quick installation is required.
Common contact materials include copper, brass, and silver - plated copper.
Copper: Copper is a good conductor of electricity and is widely used in terminal blocks. It offers low resistance and good corrosion resistance.
Brass: Brass is a cost - effective alternative to copper. It has good mechanical strength and is suitable for many general - purpose applications.
Silver - plated copper: Silver - plated copper provides even lower resistance and better corrosion resistance than copper. It is often used in high - performance applications where low resistance and reliable connections are essential.
While often used interchangeably, these terms reflect design distinctions:
Terminal Block:
Modular units snapped onto DIN rails or PCB board.
Support diverse clamping methods (screw, spring, push-in,plug in,barrier ).
Enable complex configurations (fused, ground-fault).
Terminal Strip:
Typically a single row of screw terminals mounted directly to surfaces.
Fewer features; used for basic wire consolidation ( in power distribution boxes).
Practical Impact: Terminal strips suit simple, low-density wiring, while blocks offer scalability for industrial systems.
Real-World Pain Points Terminal Blocks Solve
Connection Failure in Harsh Environments:
Loose wires in humid/vibratory settings cause downtime. Solution: Gel-sealed blocks prevent corrosion and maintain contact integrity.
Space Constraints in Control Panels:
High-density circuits demand compact solutions. Triple-level blocks consolidate signal, power, and ground connections in one footprint.
Electrical Shorts in High-Voltage Systems:
Stray wires in proximity risk arcing. Barrier strips (Tri-Barrier) use dividers to isolate terminals, preventing cross-contact accidents.
Labor-Intensive Maintenance:

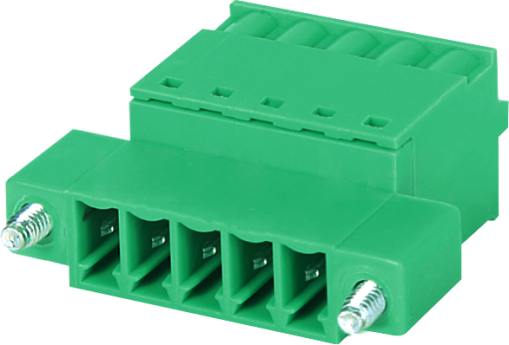

Troubleshooting hardwired systems is time-consuming. Plug-in blocks allow quick disconnection without rewiring.
Choosing the Right Terminal Block
Current/Voltage Rating: Match to load requirements (25A/300V for industrial barriers).
Wire Compatibility: Verify AWG/solid vs. stranded support ( IIDC connectors accept 18–24 AWG without stripping).
Environmental Needs: For outdoor/chemical exposure, opt for IP-rated or gel-filled blocks.
Certifications: Prioritize UL, IECEx, or ATEX compliance for safety-critical applications.
The Future trend of terminal block: Smart Terminal Blocks
Emerging designs integrate diagnostics or reverse-polarity protection diodes. These reduce human error and predictive maintenance costs—proving terminal blocks remain pivotal in evolving electrical infrastructures.
Final Insight: A terminal block isn’t just a connector; it’s an engineered safety net. By mastering types, mechanics, and selection criteria, engineers transform chaotic wiring into reliable, scalable systems.
