Your Complete Guide To Terminal Blocks Help You Save 30% Cost

Ask any electrical engineer or technician about the most fundamental yet critical components in an enclosure, and terminal blocks will undoubtedly be high on the list. These unassuming connectors are the backbone of safe, organized,and maintainable electrical connections.But doyou really understand terminal blocks? Let's dive deep into their world, covering types, selection, troubleshooting, pros and cons, and essential FAQs.

1. What is a Terminal Block?

At its core, what is a terminal block? Also known as a connection terminal, terminal strip, or screw terminal, a terminal block is a modular, insulated block that secures two or more wires together using a clamping mechanism. Think of it as a safe, organized junction point.

What are terminal blocks used for?

Their function of terminal block is multifaceted.Connect: Join wires securely within control panels, machinery, building wiring, and countless other applications.Distribute: Efficiently distribute power (ground/earth blocks, power bus bars) or signals (sensor inputs).Organize: Bring order to complex wiring, drastically improving readability and maintenance.Isolate: Provide electrical isolation between circuits.Bridge: Easily connect or disconnect circuits using jumper bars or links.Transition: Interface between different wire types or sizes, or between field wiring and PCB.Essentially,

what do terminal blocks do?

They provide a safe, reliable, and serviceable method for managing electrical connections. (Learn more about basic electrical connections: International Electrotechnical Commission - Wiring Devices)

2. Terminal Block Types: Navigating the Variety

Understanding the different types of terminal blocks is crucial for selection. Here are the most common terminal block connector types:

Barrier Terminal Blocks: Feature screw terminals separated by insulating barriers. Extremely common, robust, and versatile for power connections. Excellent for larger wires.

PCB Mount Terminal Blocks: Soldered directly onto printed circuit boards (PCB). Used extensively in electronics to connect external wires to the board. Many subtypes exist (pin headers, socket headers - sometimes referred to broadly as pin connectors types).

DIN Rail Mount Terminal Blocks: Clip onto a standard DIN rail (35mm or 15mm wide), enabling modular, flexible, and easily reconfigurable panel layouts. This is the dominant mounting style in industrial control panels. (Standardization Info: DIN Rail Standards Overview).

Feed-Through Terminal Blocks: Simple blocks where the input wire connects directly to the output wire (in/out). Used for straightforward wire-to-wire connections within a panel.

Grounding Terminal Blocks: Specifically designed for connecting protective earth (PE) or grounding conductors. Often green/yellow, may have a metal mounting foot for direct chassis connection.

Fuse Terminal Blocks: Integrate a fuse holder within the block, providing circuit protection right at the connection point.Power Distribution Blocks (Bus Bars): Designed for high-current applications, distributing power from a single large input to multiple smaller outputs.Sensor/Actuator Terminal Blocks: Often feature spring-clamp connections (like push-in or lever-actuated) for quick connection of small-gauge sensor/actuator wires. May have disconnect features.

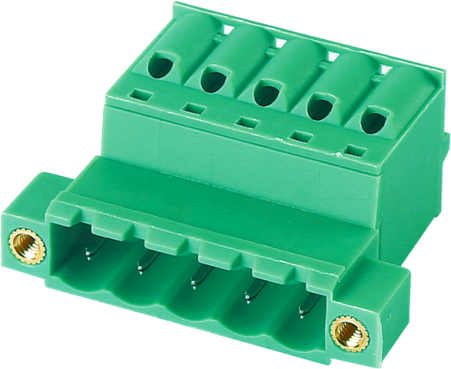

Pluggable Terminal Blocks: Consist of a base fixed to the panel/DIN rail and a pluggable connector top. Allows for quick disconnection of entire sections of wiring for maintenance/testing.

Application

Each terminal block connector type excels in distinct scenarios.

Industrial Automation: DIN rail blocks dominate PLC wiring due to modularity and rapid reconfiguration.

Energy Storage: Fuse blocks protect battery circuits from overloads in renewables installations.

Railway Systems: Spring clamps maintain vibration-resistant signaling connections.

Chemical Plants: Explosion-proof DIN blocks (certified for ATEX/IECEx Zone 1) prevent ignition in hazardous areas.

PCB Electronics: Pin headers interface sensors in IoT devices with limited space.

High-Density Control: Triple-level blocks (CTL2.5UH) separate signals/power in compact automation cabinets.

3. Selection, Installation & Usage: Getting it Right

Choosing and using the right terminal block types is paramount for safety and reliability.

Selection Criteria:Current Rating: Must exceed the circuit's maximum expected current (consider derating factors like ambient temperature and adjacent terminals).

 (Safety Standards:UL-1059 -Terminal Block).Voltage Rating: Must exceed the circuit's working voltage (AC and DC).Wire Size/Gauge: Must accommodate the wire sizes being connected (both min and max).

Connection Type: Screw clamp (universal, robust), spring clamp (push-in, fast, vibration resistant), insulation displacement (IDC - fast, no stripping for solid core), ring/spade tongue.

Mounting: DIN rail, PCB, direct panel mount, through-hole, SMD.

Pole Count: Number of separate circuits per block/module.

Environmental: IP rating (dust/water ingress), operating temperature range, chemical resistance, vibration resistance.

Certifications: UL, CSA, IEC, VDE, ATEX (for hazardous areas) as required.

Special Features: Fusing, disconnect options, test points, surge protection, marking fields.

Installation Best Practices:Mount Securely: Ensure DIN rail or panel mounting is tight.

Strip Correctly: Strip wire insulation to the recommended length (usually marked on the block) – not too short (poor contact) or too long (exposed copper risk).

Tighten Properly: For screw terminals, use the correct screwdriver size and torque to manufacturer specs. Avoid overtightening which can damage the terminal or wire. Check tightness periodically.

Use Ferrules: Highly recommended for stranded wires, especially with screw clamps. Prevents strand breakage and ensures a reliable connection.

Observe Polarity & Labeling: Connect wires correctly (e.g., L/N/PE, +/-) and label both ends clearly.

Maintain Clearance: Ensure adequate creepage and clearance distances between terminals, especially for higher voltages.

Usage Tips:Never exceed the rated current/voltage.Use jumpers/bridges correctly for common connections.Keep terminal covers on when possible for safety.Periodically inspect connections for signs of heat (discoloration), corrosion, or loosening.

4. Common Faults & Fixes: Troubleshooting Essentials

Even robust terminal blocks can encounter issues:

Overheating/Burning:

Cause: Loose connection (high resistance), overload (exceeding current rating), corrosion, undersized wire.

Fix: Immediately de-energize! Replace damaged block. Ensure tight connection, correct sizing, and proper environment. Check entire circuit for faults.

Intermittent Connection/Failure:Cause: Loose screw/spring, vibration, damaged wire strand (especially stranded wire without ferrule), corrosion.

Fix: Re-tighten connection (check torque), use ferrules on stranded wires, secure wiring against vibration, clean corrosion or replace block/wire.

Corrosion:Cause: Moisture ingress, corrosive atmosphere, dissimilar metals.

Fix: Use terminal blocks with appropriate IP rating and corrosion-resistant materials (stainless steel screws). Apply protective grease (dielectric grease) if specified by the manufacturer. Replace corroded components.

Mechanical Damage:Cause: Physical impact, over-stressing wires, improper tool use.

Fix: Replace damaged block or housing. Ensure wires are properly supported/strain-relieved.

Short Circuits:Cause: Wire whiskers (stray strands), debris/contamination, incorrect wiring, damaged insulation.

Fix: De-energize! Carefully trim stray strands, clean debris, verify wiring, replace damaged components. Ensure adequate spacing.

5. Cons & Smart Selection for Engineers & Procurement

Each terminal block connector type has strengths and weaknesse.

Barrier Blocks:Pros: High current capacity, robust, versatile wire types/sizes, excellent for power.Cons: Slower installation, requires tools, bulkier.

PCB Mount Blocks:Pros: Compact, cost-effective for high-volume, direct board interface.

Cons: Limited current/voltage vs. panel blocks, soldering required, less serviceable.

DIN Rail Mount Blocks:Pros: Modular, flexible, easy installation/maintenance, vast range of types, industry standard.Cons: Requires DIN rail space.

Spring Clamp Blocks (Push-in):Pros: Very fast installation, tool-less (often), excellent vibration resistance.Cons: Generally lower current rating than screw types, best with solid core or ferruled stranded wires, can be harder to release.

Grounding Blocks:Pros: Ensures reliable, dedicated earth path, often high current.Cons: Dedicated purpose only.

Fuse Blocks:Pros: Integrated protection, saves space, clear indication.Cons: Higher cost per point, fuse replacement needed.

Selecting the Right Type - A Guide:Engineers:Circuit Needs First: Define voltage, current, signal type (power, data, sensor).Environment: Harsh? Vibration? Moisture? Dust? Temperature extremes? Dictates IP rating, materials, connection type (spring clamps excel in vibration).              Choose form factor accordingly.Maintenance: Will frequent disconnection be needed?

Pluggable types are ideal.Safety & Standards: Mandatory certifications? Critical for UL/CE marking etc.Future-Proofing: Consider potential expansions or changes.

DIN rail modularity helps.Procurement:Total Cost of Ownership: Don't just buy the cheapest. Factor in reliability, longevity, ease of installation (labor cost), maintenance costs, and potential downtime from failures. Quality blocks save money long-term.

Supplier Reliability: Consistent supply chain? Technical support? Reputation?

Volume & Packaging: Does the supplier offer suitable quantities and packaging (reels, boxes)?

Compatibility: Ensure chosen blocks are compatible with existing systems

(DIN rail type, jumper systems).

Value Engineering: Work with engineering to identify suitable alternatives that meet specs without over-engineering. Can a standard barrier block suffice instead of a specialized type?

6. Terminal Block ‘s FAQ

Q: Are terminal blocks reusable?

A: Generally, yes! Screw terminals can be loosened/tightened repeatedly. Spring clamps (push-in) can typically be released using a tool (often a small screwdriver in the release hole). Avoid excessive reuse which can wear the clamping mechanism.

Q: Can I mix wire sizes in a single terminal block?

A: It's not recommended unless explicitly stated by the manufacturer for that specific block. Different wire sizes can lead to inconsistent clamping pressure and unreliable connections. Use blocks designed for the specific range or separate terminals.

Q: What's the difference between a terminal block and a connector (like pin/socket)?

A: Terminal blocks are typically fixed mounting points within an enclosure for joining/distributing wires. Connectors (like pin/socket types) are usually mated pairs designed for repeated connection/disconnection between devices or sub-assemblies. Terminal blocks often use connectors internally (pluggable types).

Q: How tight should screw terminals be?

A: Crucially tight enough for a secure, low-resistance connection, but not so tight as to strip the screw head, shear the screw, crush the wire strands, or crack the terminal body. Always refer to the manufacturer's specified torque value if available. Use a torque screwdriver for critical applications.

Q: Are ferrules necessary?

A: Highly recommended for stranded wires, especially in screw terminal blocks. They prevent strand breakage, ensure all strands are captured evenly, improve conductivity, and reduce the risk of stray strands causing shorts. Often mandatory for compliance with safety standards.

Q: How do I choose the right current rating?

A: The terminal block's rated current must exceed the circuit's maximum operating current. Apply derating factors: reduce the usable current rating for high ambient temperatures (>40°C is common), when multiple adjacent terminals carry high current, or in high-vibration environments. Consult manufacturer derating curves.

7. Conclusion: The Critical Connection Point

Terminal blocks are far more than simple connection points; they are fundamental to the safety, reliability, organization, and serviceability of virtually every electrical system. Understanding what a terminal block in electrical systems truly entails – from the types of terminal blocks and their specific function of terminal block, to proper selection, installation, and troubleshooting – is essential knowledge for engineers, technicians, and procurement professionals alike.

By carefully considering the electrical requirements, environmental conditions, application needs, and total cost of ownership, you can confidently select the optimal terminal block types for your project. Remember, investing in quality components and proper installation practices pays dividends through enhanced safety, reduced downtime, and long-term system reliability. Never underestimate the power of a well-chosen and correctly installed terminal block – it truly is the unsung hero holding your electrical systems together.
