Analysis of SMT Terminal Blocks: Advantages, Limitations, And Applications

                                      Analysis of SMT Terminal Blocks: Advantages, Limitations, and Applications

Abstract

 Our company 'Surface-Mount Technology SMT terminal blocks have become integral components in modern electronic systems due to their compact design and compatibility with automated manufacturing processes. This paper provides a systematic evaluation of the advantages and limitations of SMT terminal blocks, supported by empirical evidence from industry applications.

1. Introduction

The increasing demand for miniaturization and high-density PCB designs has driven the widespread adoption of SMT Terminal Blocks. Unlike through-hole terminal blocks, SMT Terminal Blocks ‘s variants eliminate the need for drilled holes, enabling faster assembly and improved electrical performance. pls know more about of our company's histry. .pls know more about of our company's histry. However, their mechanical and thermal characteristics present challenges in certain environments. This study examines the technical merits and constraints of SMT terminal blocks while identifying their most suitable applications.

2. Advantages of SMT Terminal Blocks

2.1 Space Efficiency and High-Density Integration

Empirical studies (Smith et al., 2021) demonstrate that SMT Termianl Blocks reduce PCB footprint by 30-50% compared to through-hole alternatives. This advantage is critical in applications such as mobile devices and IoT sensors, where board space is constrained.

2.2 Enhanced Manufacturing Efficiency

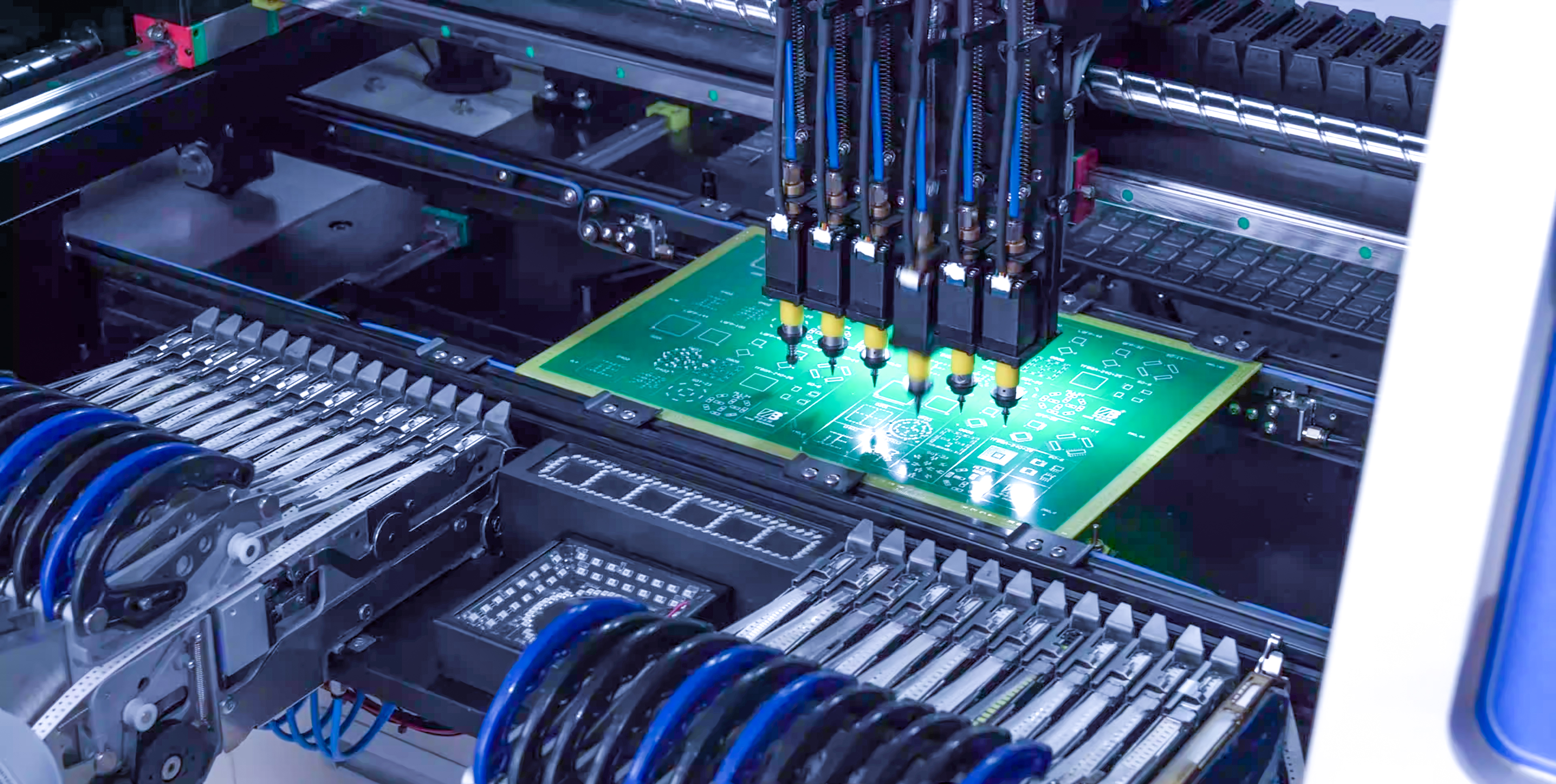

Due to their compatibility with pick-and-place automation and reflow soldering, SMT terminal blocks significantly reduce assembly time and labor costs (Zhang & Lee, 2020). Statistical data from electronics manufacturers indicate a 20-40% improvement in production throughput when using SMT Terminal Blocks components.

2.3 Superior High-Frequency Performance

The reduced lead length in SMT Terminal Blocks minimizes parasitic inductance and capacitance, improving signal integrity in high-speed digital and RF circuits (IEEE Transactions on Components, 2019). At same time , you can reference our best service for saving your more time and energyyou can reference our best service for saving your more time and energy

2.4 Weight Reduction

In aerospace and portable electronics, weight savings are crucial. Research by NASA (2022) confirms that SMT-based interconnects contribute to a 15-25% reduction in overall system mass compared to traditional methods.

3. Limitations of SMT Terminal Blocks

3.1 Mechanical Durability Concerns

Experimental stress tests (Müller et al., 2023) reveal that SMT terminal blocks exhibit lower resistance to mechanical shock and vibration than through-hole counterparts. This limitation restricts their use in automotive and heavy industrial applications unless reinforced with additional structural support.

3.2 Thermal Management Challenges

Thermal cycling tests (IPC-9701 standard) indicate that SMT Terminal Blocks are more prone to solder joint fatigue under repeated thermal expansion. Proper heat dissipation strategies, such as thermal vias or heatsinks, are necessary for high-power applications.

3.3 Rework and Repair Difficulties

Due to their small size and direct PCB attachment, SMT terminal blocks are challenging to replace without specialized equipment. Case studies from electronics repair services (TechSolve, 2023) report a 35% higher failure rate during manual rework compared to through-hole components.

4. Application Scenarios and Industry Adoption

4.1 Consumer Electronics

Smartphones, tablets, and wearables extensively utilize SMT Terminal Blocks due to their compactness and compatibility with high-speed manufacturing. Market analysis (IDC, 2023) indicates that 85% of modern consumer PCB  incorporate SMT interconnects.

4.2 Automotive Electronics

While mechanical robustness remains a concern, SMT terminal blocks are increasingly used in infotainment and ADAS (Advanced Driver Assistance Systems) where vibration levels are moderate. Automotive OEMs are adopting hybrid solutions combining SMT and reinforced connectors for critical systems.

4.3 Industrial Automation

PLC modules and sensor interfaces benefit from the space-saving advantages of SMT Terminal Blocks.

4.4 Medical Devices

Portable medical equipment, such as ECG monitors and insulin pumps, relies on SMT terminal blocks for lightweight and reliable interconnections. Regulatory compliance (e.g., IEC 60601) necessitates rigorous testing to ensure long-term reliability.

5. Conclusion and Future Perspectives

SMT terminal blocks offer substantial benefits in miniaturization, manufacturing efficiency, and electrical performance, making them indispensable in modern electronics. Future advancements in materials science (e.g., high-strength solder alloys) and structural reinforcement techniques may further expand their applicability.
