                     How to Wire a Terminal Block Strip

Terminal Block Wiring plays a very important role in our life, electronics components , industry , lighting, PLC Control systems , and home appliance.

Terminal block strips form the backbone of industrial electrical systems, providing secure connections in control panels, machinery, and terminal box wiring applications. Whether using fixed terminal blocks, barrier strip terminal block systems, or insulated terminal block solutions, proper installation ensures safety and reliability. This comprehensive guide covers wiring best practices for ideal terminal strips based on IEC 60947-7-1 standards.

1. Types of Terminal Blocks and Their Applications

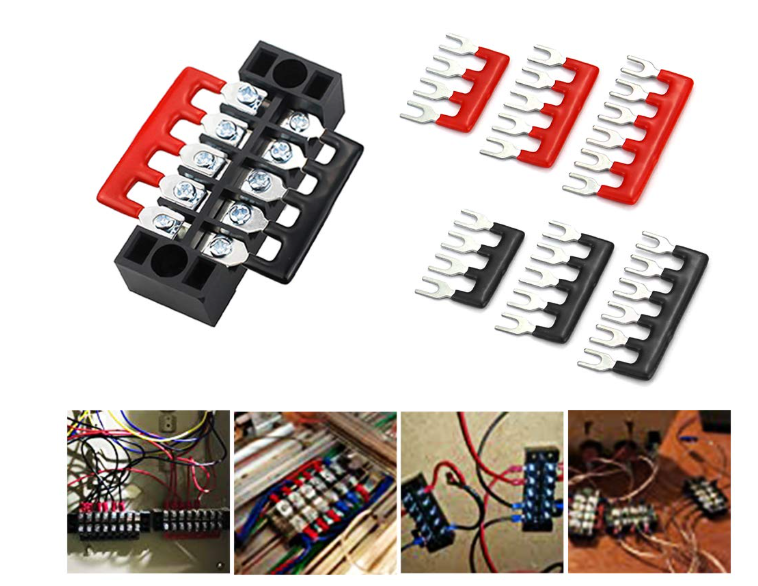

1.1 Barrier Strip Terminal Blocks

Structure: Metal partitions isolate contacts

Best For: High-voltage (600V+) and multi-wire junctions

Key Feature: Dual-screw clamping for wire junction block setups

1.2 Insulated Terminal Blocks Materials: Polyamide or PC/ABS housing (UL94 V-0 rated)

Advantages:

Prevents accidental contact (IP20+)

Resists oils and chemicals

1.3 Fixed Terminal Blocks Mounting: Direct PCB or panel attachment

Use Cases: Permanent installations like HVAC controllers

1. Tools and Materials Required Essential Toolkit Tool Purpose Critical Specs Torque Screwdriver Securing terminal block wire connector 0.2–1.2 N·m range Wire Strippers Conductor preparation 0.5–10mm² capacity Ferruling Tool Stranded wire termination DIN 46228 compliance Multimeter Continuity verification CAT III 600V rating Consumables Heat-shrink tubing (3:1 ratio)

Copper ferrules for stranded wires

Dielectric grease for barrier strip terminal block

1. Step-by-Step Wiring Procedure 3.1 Safety Precautions De-energize circuits: Verify with non-contact voltage tester

Wear PPE: Insulated gloves (Class 00) + safety glasses

Grounding: Bond metal electrical terminal block to chassis

OSHA Reference: Lockout/Tagout Procedures

3.2 Conductor Preparation Strip insulation: 7–9mm exposure (per IEC 60998)

Twist strands: Clockwise for screw terminals

Apply ferrules: For >0.5mm² stranded wires

3.3 Terminal Connection Methods A. Screw Terminal Wiring Insert wire into clamp

Torque to specification:

M3 screws: 0.5 N·m

M4 screws: 0.8 N·m

Tug test: 50N force verification

B. Spring Clamp Wiring Press orange lever

Insert prepared conductor

Release lever (audible click confirms)

Critical: Maintain 8mm creepage distance between phases

1. Terminal Box Wiring Strategies 5.1 Layout Principles Separation: Power (left) vs signal (right) blocks

Labeling: Laser-etched circuit IDs every 50mm

Strain Relief: 15cm service loops

5.2 Environmental Protection Condition Solution Humidity >80% IP67 insulated terminal block + silica gel packs Vibration Spring terminals + vibration washers High Temp Ceramic fixed terminal blocks 6. Common Mistakes and Fixes Critical Errors Table Mistake Risk Correction Over-torquing screws Thread stripping Replace block + use torque driver Mixed metals (Cu/Al) Galvanic corrosion Apply NO-OX-ID grease Inadequate wire support Fatigue failure Add cable glands every 200mm 7. Maintenance and Testing Inspection Protocol Annual checks:

Re-torque screws to spec

Megger test (>100MΩ at 500VDC)

Thermal scanning:

ΔT >15°C indicates failure

Smart Monitoring Options Phoenix Contact AIM sensors

Weidmüller u-control wireless monitors

1. Real-World Application Case Studies 8.1 Solar Farm Combiner Box Challenge: UV degradation in terminal box wiring

Solution:

UV-stable insulated terminal block (UL 746C)

Tin-plated copper contacts

8.2 CNC Machine Panel Issue: Vibration loosening

Fix:

Ideal terminal strips with spring-assisted screws

Monthly torque audits

Conclusion:

5 Golden Rules for Reliable Wiring Match ratings: Never exceed 75% of electrical terminal block current limit

Torque religiously: Document every connection

Isolate properly: Use barrier strip terminal block for >50V systems

Label everything: Permanent markers fade - use engraved tags

Test thoroughly: Continuity + insulation resistance pre-energization

Standards Reference: IEC 60947-7-1 Terminal Requirements

FAQ: Terminal Block Wiring

Q1: Can I daisy-chain multiple loads to one terminal?

A: Only with wire junction block rated for summed current (e.g., 30A block for 10A×3 circuits).

Q2: How to waterproof terminal block connections?

A: Use IP67/IP68 insulated terminal block + adhesive-lined heat-shrink.

Q3: What’s the lifespan of terminal blocks?

A: 3+ years if:Operating below 60°C Annual maintenance performed

Q4: Are terminal blocks reusable?

A: Screw types: Yes (max 3 re-torques). Spring types: No - replace after disconnection.

Q5: How to choose ideal terminal strips?

A: Prioritize:

UL/IEC ,TUV,ROHS,SGS,CQC certification

Environmental compatibility

Serviceability features
