What is pluggable terminal block?
As the name suggests, the Pluggable terminal block also called plug in terminal block ,has a plug outlet to allow connection to a socket. The wire is inserted and clamped with a screw. Connection to the wire is made via a plug and socket configuration. This terminal block is used in situations where a quick disconnect is required
Terminal blocks are essential components in electrical components and industrial systems, especially pluggable terminal block ,which providing secure and organized connections for wires and cables. Among the most widely used types are pluggable screw terminal blocks, plug-in terminal blocks, and Molex terminal blocks, each offering unique advantages for different applications.
This comprehensive guide explores the key features, benefits, and selection criteria for terminal blocks, with a focus on 3-pole terminal blocks, 5.08mm pitch connectors, and 7.62mm/2, 3.81mm/7.5mm socket terminal blocks.
these models are very Hot sale in your market and very very competitive!
| pluggable terminal block male and female | wago pluggable terminal block |
| pluggable terminal block 2 pin | 3 pin pluggable terminal block |
| pluggable terminal block 3 pin | weidmuller pluggable terminal block |
| pluggable terminal block 4 pin | 3.5 mm pluggable terminal block |
| pluggable terminal block 3.81 mm | 5.08 mm pluggable terminal block |
| pluggable terminal block 3.5 mm | panel mount pluggable terminal block |
| pluggable terminal block 5.08 mm | din rail pluggable terminal block |
| pluggable terminal block socket | pcb pluggable terminal block |
| pluggable terminal block 5 pin | pluggable screw terminal block |
Pluggable Terminal Blocks 3.81mm pitch Connector
UL/CUL UL/CUL(Technical Data) | |||
Use Group | B | C | D |
Rated Voltage) [V] | 300 | 300 | |
(Rated Current) [A] | 8 | 10 | |
(Wire Ra,(solid/Standed) [AWG] | 22-16 | ||
(Withstanding Voltage) | AC1600V/1Min | ||
IEC IEC(Technical Data) | |||
(Overvoltage Category) | ||| | ||| | || |
(Contamination Class) | 3 | 2 | 2 |
(Rated Voltage) [V] | 160 | 320 | |
(Rated Current) [A] | 7 | 7 | |
(Impulse wiithstand voltagea) [KV] | 2.5 | 2.5 | |
(Conductor cross section) (Solid/flexible) [mm²] | 1.5 | ||
(Material) | |||
(Insulation Material) | PA66 | ||
(Imflammability) | |||
(Contactor Material) | (Copper alloy) | ||
(Contactive Coating) | (Ni Plated) | ||
(Other Data) | |||
Pitch) [mm] | 3.81 | ||
Poles) [P] | 2-24 | ||
(Stripping Length) [mm] | 7-8 | ||
(Screw) (Torque Max) [N.m] | M2/0.2 | ||
(Operating temperatur) [℃] | -40~+105 | ||
(Pin Dimensions) [mm] | |||
(PCB Hole Diameter) [mm] | |||

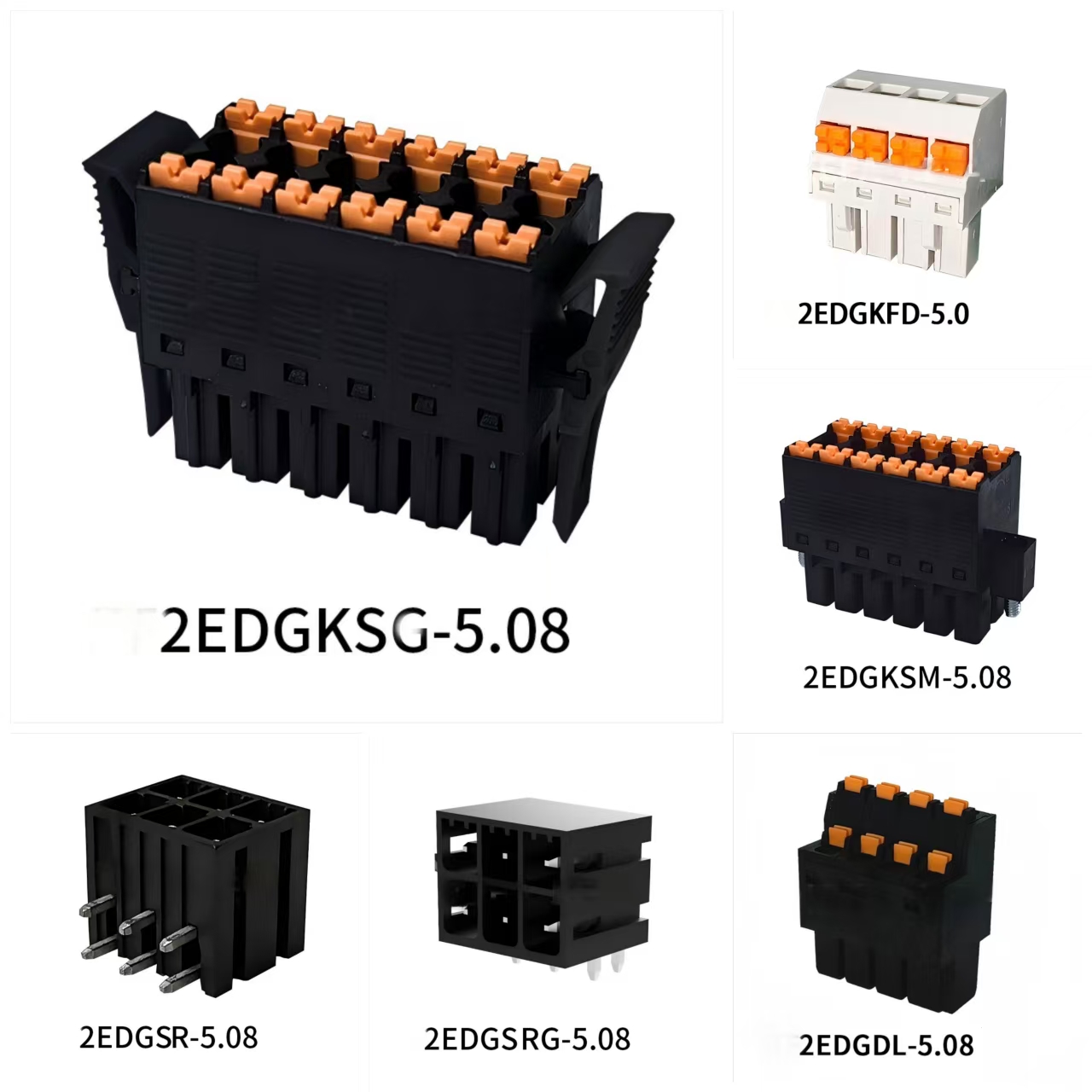

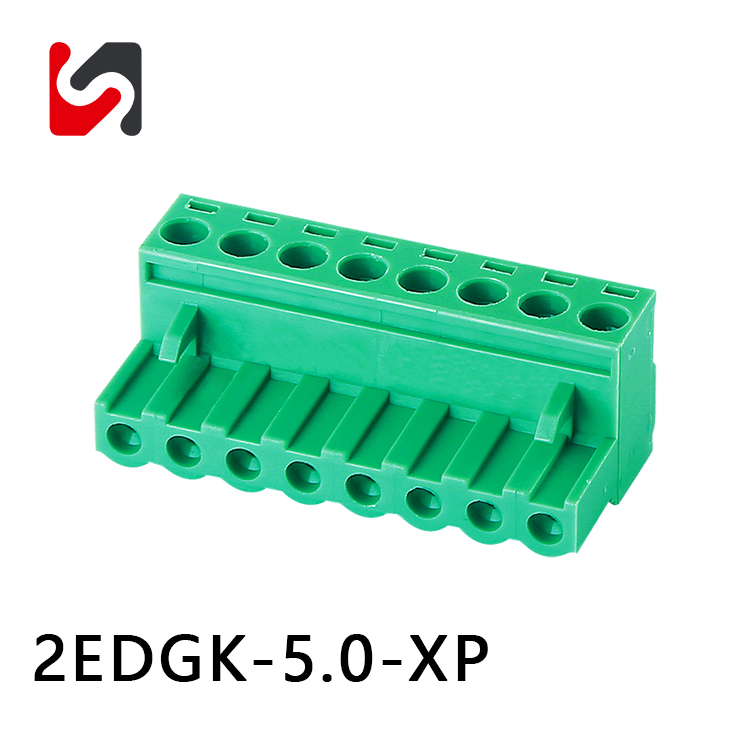

Pluggable terminal block 5.0/5.08mm pitch connectors
UL/CUL UL/CUL(Technical Data) | |||
(Use Group) | B | C | D |
(Rated Voltage) [V] | 300 | 300 | |
(Rated Current) [A] | 10 | 10 | |
(Wire Range) (solid/Standed) [AWG] | 24-12 | ||
(Withstanding Voltage) | AC1600V/1Min | ||
IEC IEC(Technical Data) | |||
(Overvoltage Category) | ||| | ||| | || |
(Contamination Class) | 2 | 2 | |
(Rated Voltage) [V] | 320 | 630 | |
(Rated Current) [A] | 15 | 15 | |
(Impulse wiithstand voltagea) [KV] | 4.0 | 4.0 | |
(Conductor cross section) (Solid/flexible) [mm²] | 2.5 | ||
(Material) | |||
(Insulation Material) | PA66 | ||
(Imflammability) | |||
(Contactor Material) | (Copper alloy) | ||
(Contactive Coating) | (Ni Plated) | ||
(Other Data) | |||
(Pitch) [mm] | 5.08 | ||
(Poles) [P] | 2-24 | ||
(Stripping Length) [mm] | 7-8 | ||
(Screw) (Torque Max) [N.m] | M2.5/0.4 | ||
(Operating temperatur) [℃] | -40-105 | ||

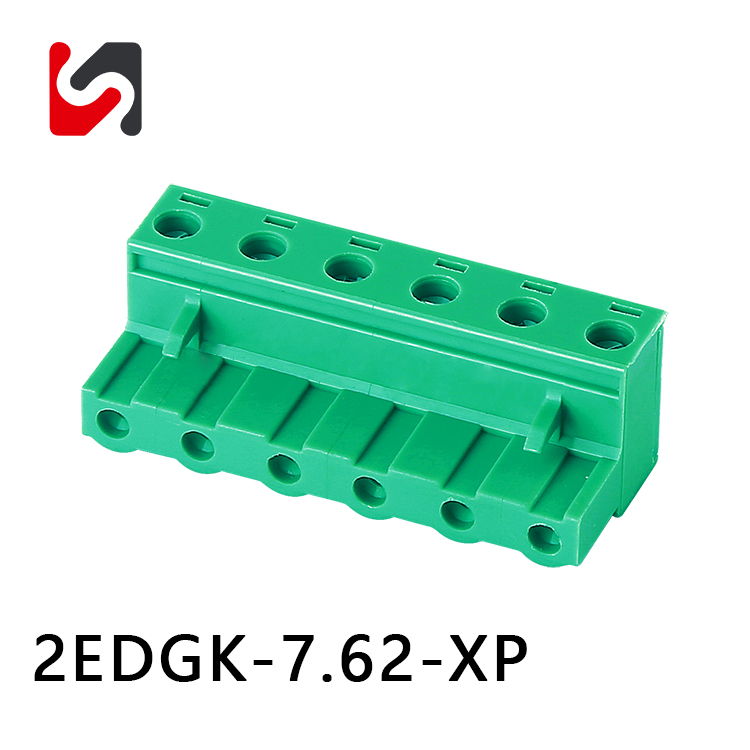

Pluggable terminal block 7.5/7.62mm pitch connectors
UL/CUL UL/CUL(Technical Data) | |||
(Use Group) | B | C | D |
(Rated Voltage) [V] | 300 | 300 | |
(Rated Current) [A] | 10 | 10 | |
(Wire Range) (solid/Standed) [AWG] | 24-12 | ||
(Withstanding Voltage) | 1600V/1Min | ||
IEC IEC(Technical Data) | |||
(Overvoltage Category) | ||| | ||| | || |
(Contamination Class) | 3 | 2 | 2 |
(Rated Voltage) [V] | 600 | 1000 | |
(Rated Current) [A] | 15 | 15 | |
(Impulse wiithstand voltagea) [KV] | 6.0 | 6.0 | |
(Conductor cross section) (Solid/flexible) [mm²] | 2.5 | ||
(Material) | |||
(Insulation Material) | PA66 | ||
(Imflammability) | UL94V-0 | ||
Contactor Material) | (Copper alloy) | ||
Contactive Coating) | (Ni Plated) | ||
(Other Data) | |||
(Pitch) [mm] | 7.62 | ||
(Poles) [P] | 2-24 | ||
(Stripping Length) [mm] | 7-8 | ||
(Screw) (Torque Max) [N.m] | M2.5/0.4 | ||
(Operating temperatur) [℃] | -40~+105 | ||
Pluggable Terminal Blocks Advantages:
Time and Cost Savings: Pluggable terminal blocks significantly reduce installation time by allowing for quick and easy wiring without the need for specialized tools. This translates to lower labor costs and faster project completion.
Flexibility and Customization: The modular design allows for easy adaptation to various applications, wire sizes, and connection types, making them suitable for a wide range of needs.
Improved Maintenance and Troubleshooting: The ability to quickly remove and replace individual modules makes maintenance and troubleshooting easier and faster. This reduces downtime and minimizes the risk of damaging the system.
Enhanced Safety: Safety features like finger protection and locking mechanisms prevent accidental contact with live wires and ensure reliable connections, says Terminal-Block-Derks.
Reliability: Pluggable terminal blocks often feature robust designs and materials that ensure reliable and long-lasting performance, says Phoenix Contact.
Easy Installation and Removal: The plug-and-play design allows for straightforward installation and removal, reducing the need for specialized tools and skills, says Shanghai Shanye Electronics Co;Ltd
Cost-Effective: Pluggable terminal blocks can be a cost-effective solution, especially in large-scale projects, by reducing labor costs and minimizing errors.
