Do You Really Understand Terminal Blocks?

         Do you really understand terminal blocks?

What is a Terminal Block?

As we know , Terminal Block is the most important part of electronic components using process ! Nearly in everywhere of wiring connection .A terminal block consists of a modular housing with an insulated body that secures two or more wires together. Terminal blocks—also referred to be called terminal connectors, connection terminals, —are used in a wide array of industry applications where electrical systems need to be safely connected. They are ideal for designs requiring secure, well-organized, and semi-permanent wire connections that can be easily swapped out for inspection or repair in the field.Types of terminal blocks

There are so many kinds of terminal blocks that can be used in  design and electronics components.

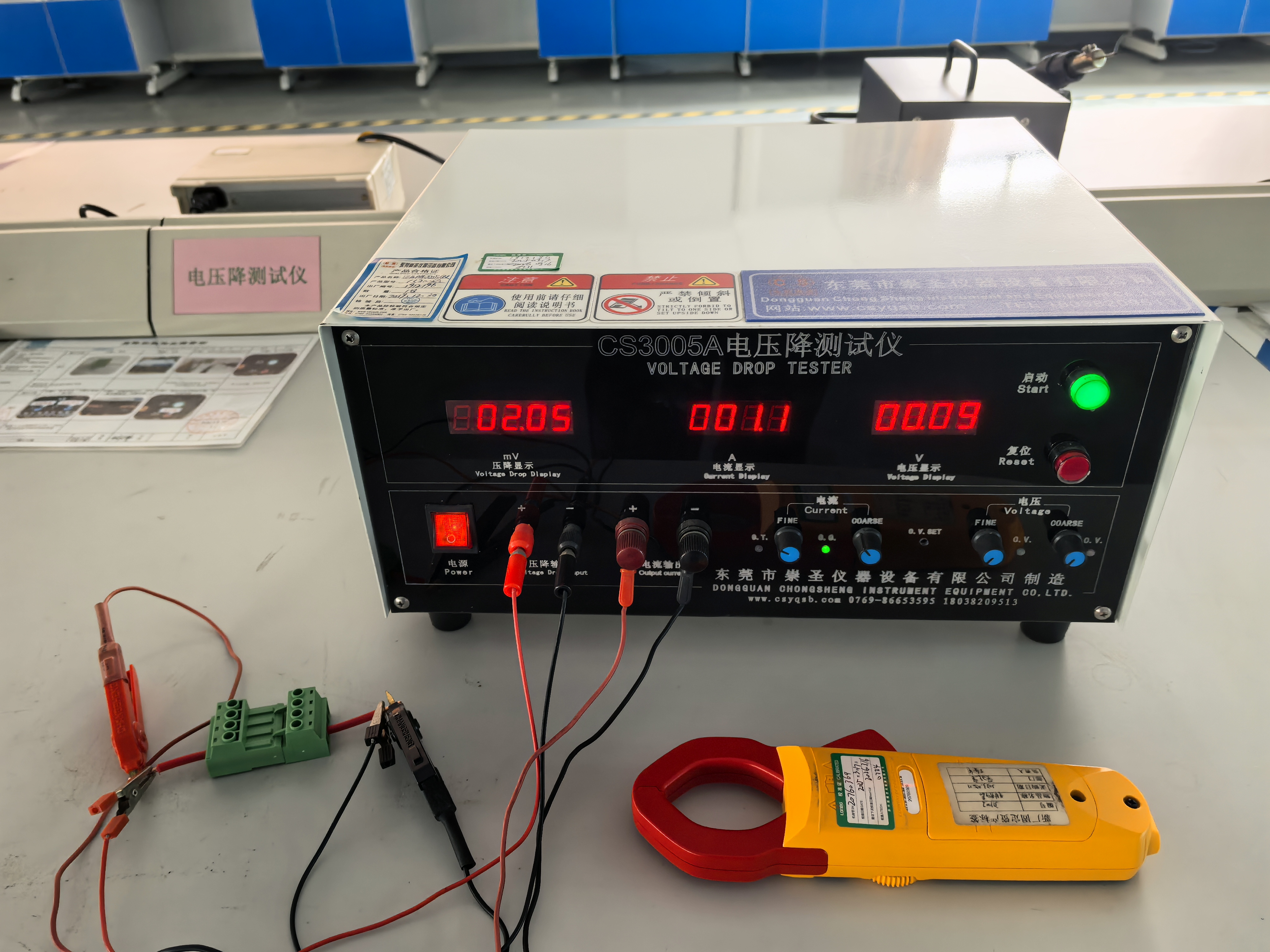

What is a pluggable terminal block?

As the name shows, the Pluggable terminal block also called pluggable screw terminal block,which has a plug outlet to allow connection to a socket. Customers sometime distingusish male and female .The wire is inserted and clamped with a screw. Connection to the wire is made through a plug and socket configuration. This terminal block is used in situations where a quick disconnect is required

Here are some detailed benefits wire connection shows for pluggable terminal block

·



Saving Time and Cost:

·The pluggable design allows for rapid wiring connections and disconnections, reducing installation time and the need for specialized tools and skills, ultimately lowering costs.

·Flexibility and Scalability:

·Pluggable terminal blocks can be easily adapted to different wire sizes, connection types, and application requirements, making them versatile for both small and large projects.

·Improved Maintenance and Troubleshooting:

·The modular nature of these blocks facilitates easy removal and replacement of components without disconnecting the entire system, streamlining maintenance tasks and reducing downtime.

·Enhanced Safety:

·Pluggable terminal blocks often include safety features like finger protection and locking mechanisms, minimizing the risk of electrical hazards and ensuring user safety.

·Space Efficiency:

·Some pluggable terminal blocks, particularly those with multi-level designs, can reduce the amount of panel space required, saving valuable space in enclosures and control panels.

·Reliability and Reduced Downtime:

·To secure connections provided by pluggable terminal blocks (plug in terminal block)

contribute to increased reliability, reducing the likelihood of electrical failures and downtime.

·

Types of Terminal Blocks

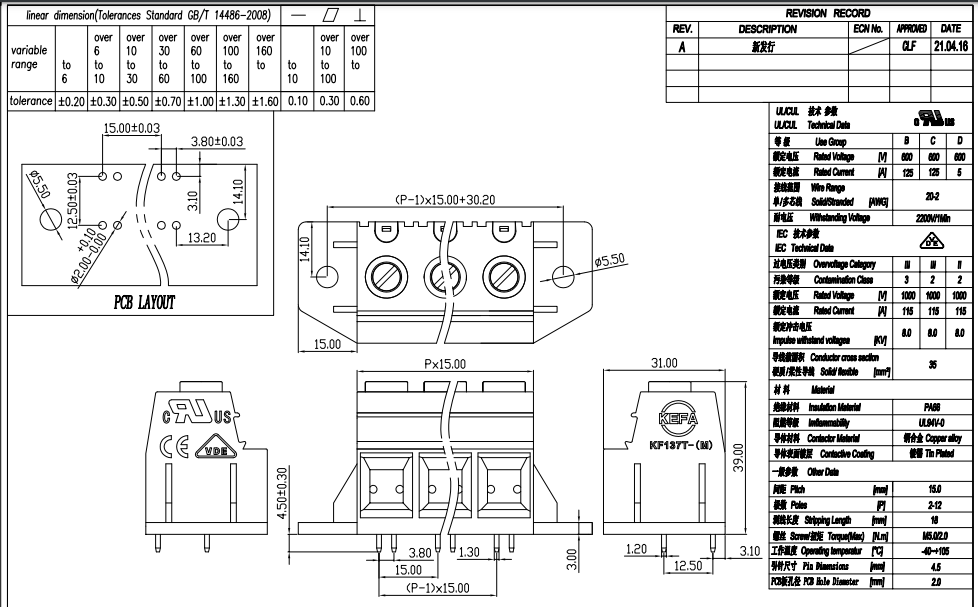

What is a PCB terminal block?

PCB Screw Terminal Block also called PCB terminal blocks or PCB Mount ,which enable the easy and safe transmission of signals, data, and power to the PCB. They are suitable for a variety of applications in numerous industries, markets, and for Industry 4.0 applications.

What are the pros and cons of screw terminal blocks?

The benefits of screw terminal blocks are their reliability, low cost, and easy maintenance. However, they require more time and effort to wire up, and they may loosen over time when exposed to vibration.

Often referred to as Eurostyle or wire-to-board terminal blocks, PCB mount terminal blocks work by inserting bare wires into the module where a clamp secures the wire in the housing. The housing is then soldered to a PCB in common footprints. PCB mount terminal blocks can be single, dual, or multi-level modules.



Barrier Terminal Block （Barrier Strips)

have a screw down terminal where a ring or spade terminal is attached to the wire and then inserted onto the screw and tightened into the housing. Barrier strips are commonly used where vibration is a concern.

Barrier Terminal Block advanges:

1. Secure & Reliable Connections Strong Clamping Force: Screw terminals provide a tight, vibration-resistant connection, reducing the risk of loose wires.

High Current/Voltage Handling: Suitable for higher power applications with power distribution terminal block.

typically up to 100A+ and 600V+ depending on the model).

Stable Contact: Ensures minimal resistance and heat generation.

1. Easy Installation & Maintenance Tool-Friendly: Standard screwdriver operation makes wiring simple.

Reusable: Wires can be disconnected and reconnected without damaging the terminal.

Clear Markings: Numbered or labeled terminals help prevent wiring errors.

1. Versatility & Compatibility Wide Wire Range: Accommodates different wire gauges (e.g., 0.5mm² to 25mm²).

Multiple Wire Types: Works with solid, stranded, or ferruled wires.

Customizable Configurations: Available in feed-through, grounding, fused, and multi-level designs.

1. Durability & Safety High-Quality Materials: Made from flame-retardant plastics (e.g., PA66, PC) and corrosion-resistant metal (e.g., tinned copper).

Protective Barriers: Physical separation between terminals prevents accidental short circuits.

Resistant to Harsh Conditions: Performs well in high-temperature, humid, or dusty environments.

1. Cost-Effective Solution Affordable: Lower cost compared to some specialized connectors.

Long Lifespan: Durable construction reduces replacement needs.

DIN Rail Terminal Block

DIN Rail terminal blocks also called din terminal block

are typically offered as a feed-through type for wire-to-wire connections or din rail mounted terminal blocks

, which visually looks the same as a feed-through style, but instead of connecting the incoming wires, it grounds them to the DIN rail or panel.



What is the standard size of DIN rail channel?

din rail screw terminal block are available in 35 mm Top Hat section (7.5 mm and 15 mm deep), 32 mm ("G" Section) and 15 mm width. These channels are made of mild steel. Channels of 300, 500 and 1000 mm (with or without slot) are available as standard lengths.

Nominal Cross Section 0.14mm² to 2.5mm² (1) 0.34mm² to 2.5mm² (2) 0.14mm² to 4mm² (2) 0.2mm² to 6mm² (1) 0.34mm² to 4mm² (1) 0.5mm² to 10mm² (2) 0.5mm² to 6mm² (1) 1.5mm² (4)

How to use a terminal block ?

Secure the Connection Make sure the equipment is turned off before proceeding. First, strip a small amount of the insulation off of the end of the wire (about one inch or so). Unscrew the terminal block's retaining screw, then place the wire inside the hole. Tighten the screw, making sure that it's secure.

Are terminal blocks safe? Terminal blocks, also known as terminal connectors or connection terminals, are insulated modular blocks that secure two or more wires together. Used in an wide of industrial applications requiring safely connected electrical systems, terminal blocks provide secure, well-managed and semi-permanent wire connections.

Can a terminal block go bad?

The terminal block in your dryer is where all of the power cables meet and are connected to the different parts of the appliance. If the terminal block is bad or damaged, it may mean that the power won't be delivered properly and then the machine may experience problems starting or turning on.

When problems occur with terminal blocks, it's important to address them promptly to maintain the integrity of electrical and electronic systems. Common issues include loose connections, overheating, and improper wire handling. Solutions often involve ensuring proper tightening, selecting appropriate wire sizes and stripping lengths, and using the correct tools for installation and maintenance.

Here are detailed common problems and solutions:

1. Poor Connection and Loose Wire:

Sometimes the wires may happend to be unconnection,so, leading to poor conductivity or intermittent connections.

Solution: Ensure wires are stripped to the appropriate length and inserted fully into the terminal. Tighting the screws or clamps properly to secure the wires in place. Use proper crimping tools for better wire termination.

2. Over-Tightening Screws:

Over-tightening screws can damage wires, deform the terminal, or even break the screw or the terminal.

Solution: Follow manufacturer guidelines for recommended torque values. Use torque tools or wrenches to avoid excessive force. Use terminal blocks with torque-limiting features if possible.

3. Incorrect Wire Sizing:

Using wires with sizes that are too large or too small for the terminal can lead to poor connections or difficulty in fitting.

Solution: Choose the appropriate terminal block size and wire gauge according to the application's requirements. Follow manufacturer guidelines for wire size compatibility.

4. Incorrect Wire Stripping:

Improperly stripped wires can lead to poor connections or exposed conductors that might cause short circuits.

Solution: Use wire stripping tools to remove the appropriate amount of insulation without damaging the conductor. Ensure that the exposed conductor fits properly within the terminal.

5. Misalignment of Terminals:

Terminals might not align properly due to manufacturing defects or improper installation, causing connection issues.

Solution: Inspect the terminal block for proper alignment before use. If misalignment is detected, replace the terminal block or adjust its position as needed.

6. Insufficient Insulation:

Inadequate insulation between adjacent terminals can result in short circuits.

Solution: Use terminal blocks with adequate spacing and insulation barriers between terminals. Avoid overcrowding the terminal block.

7. Vibration and Mechanical Stress:

In applications subject to vibration or mechanical stress, wires might loosen over time.

Solution: Choose terminal blocks with vibration-resistant features, such as spring-loaded terminals or locking mechanisms. Regularly inspect and tighten connections in high-vibration environments.

8. Environmental Factors:

Dust, moisture, corrosive substances, and extreme temperatures can affect terminal block performance.

Solution: Select terminal blocks with appropriate IP ratings for the environment. Consider using sealed or protected terminal blocks for harsh conditions.

9. Lack of Proper Labeling:

Unclear or absent labeling can lead to confusion during installation, maintenance, or troubleshooting.

Solution: Label each terminal with relevant information like wire identification, function, or connection points. This aids in easy identification and reduces errors.

·

· More of terminal block acknowledge can reference below link;

International Electrotechnical Commission IEC 60320
