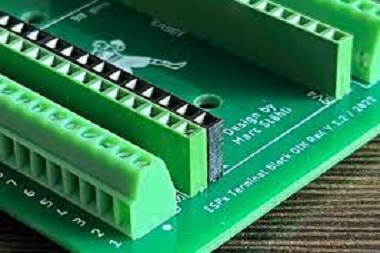

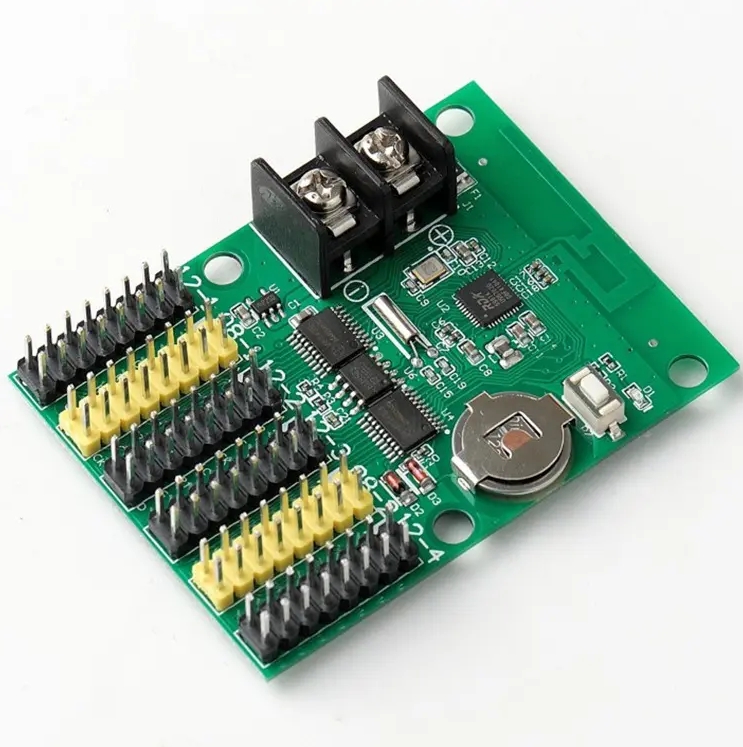

Basic tools and accessories for using terminal blocks

Using terminal blocks requires a few basic tools and accessories to ensure a safe and reliable connection. Here are some essential tools and accessories for using terminal blocks:

Wire Strippers: Wire strippers are an essential tool for removing the insulation from the ends of wires to be connected to the terminal block. It is important to use the correct size wire stripper for the wire being used to ensure the insulation is removed without damaging the wire.

Screwdrivers: Screwdrivers are needed to tighten the screws on terminal blocks with screw connections. The screwdriver should fit the head of the screw precisely to ensure proper tightening without damaging the screw or the terminal block.

Crimping Tool: Crimping tools are used to make crimp connections on terminal blocks with crimp connections. The crimping tool should be selected based on the size of the wire and the type of crimp connection being used.

Cutting Pliers: Cutting pliers are used to cut wires to the appropriate length and to remove excess wire after connections have been made.

Cable Ties: Cable ties are used to secure wires and cables to the terminal block or to other components of the electrical system. This helps prevent strain on the wires and can help improve the overall appearance of the installation.

Marking Tools: Marking tools, such as label makers, are used to label wires and terminal blocks for easy identification and troubleshooting. This is particularly important in larger installations where many wires and terminal blocks may be present.

End Covers: End covers are used to cover the open ends of terminal blocks to help prevent accidental contact with live wires. This helps improve safety and compliance with electrical codes and regulations.

Jumpers: Jumpers are used to connect adjacent terminal blocks together electrically. This helps simplify wiring and reduce installation time and costs.

Mounting Accessories: Mounting accessories, such as DIN rails and mounting brackets, are used to secure the terminal block in place. This helps ensure a secure and stable connection and improves overall reliability.

Testing Equipment: Testing equipment, such as multimeters and continuity testers, are used to test the electrical continuity and functionality of the terminal block and the connected wires. This helps ensure a safe and reliable connection.

In summary, the tools and accessories needed for using terminal blocks are relatively simple and straightforward. By selecting the appropriate tools and accessories for the application, users can ensure a safe and reliable electrical connection. It is important to follow manufacturer instructions and electrical codes and regulations when using terminal blocks to ensure proper installation and operation.
