Introduction

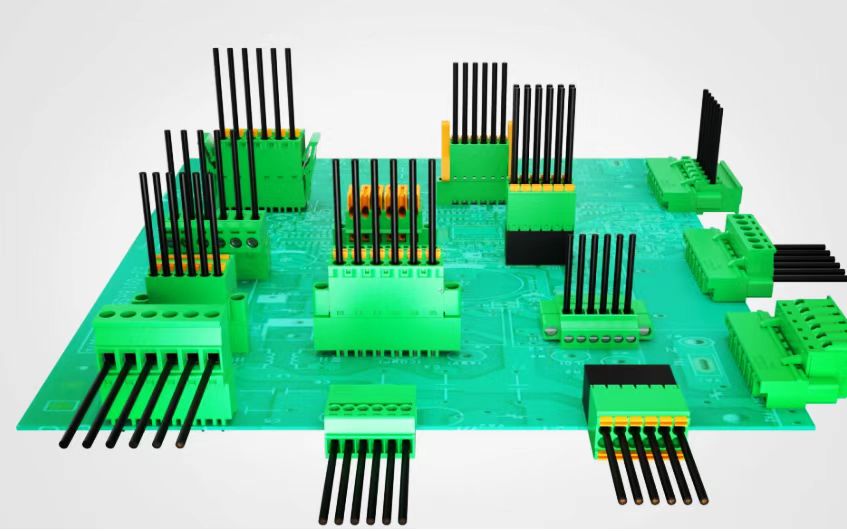

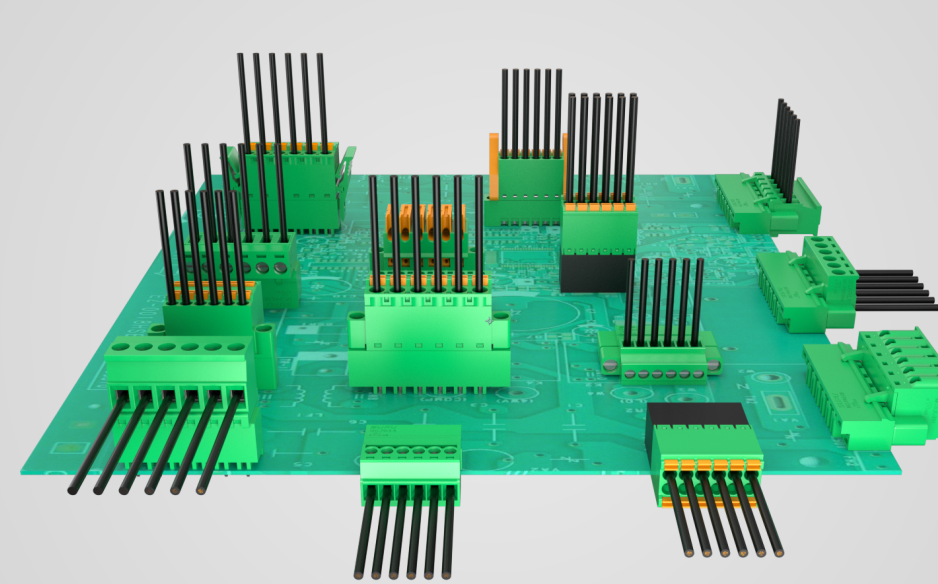

Plug-in terminal blocks  are widely used in electrical and electronic systems for secure and convenient wire connections. They allow for easy installation and maintenance, making them popular in industrial control panels, power distribution systems, and automation equipment. So ,   How to choose High Quality Plug - in terminal blocks is very very  important for all of us ! However, plug-in terminal blocks can encounter problems during use. This article discusses common issues,  causes, and effective solutions to ensure reliable performance.

Common Problems with Plug-in Terminal Blocks

1. Loose Connections

One of the most frequent issues with plug-in terminal blocks is loose wire connections. This can lead to increased resistance, overheating, and even electrical failures.

Causes

- Improper tightening of screws

- Vibration in industrial environments

- Thermal expansion and contraction

Solutions:

- Use a torque screwdriver to ensure proper tightening.

- Regularly inspect and retighten connections in high-vibration applications.

- Choose  plug-in terminal blocks with spring-loaded or cage clamp designs for better grip.

2. Overheating

Excessive heat in plug-in terminal blocks  can damage insulation and cause short circuits.

Causes:

- High current exceeding the terminal ‘s rating

- Poor contact resistance due to oxidation or contamination

- Insufficient ventilation in enclosed spaces

Solutions:

- Select  plug-in terminal blocks  with appropriate current ratings.

- Clean contact surfaces regularly to prevent oxidation.

- Ensure proper airflow around terminal blocks in control panels.

3. Corrosion and Oxidation

Moisture and environmental contaminants can cause corrosion on metal contacts, increasing resistance and reducing conductivity.

Causes:

- Exposure to humidity, chemicals, or salt spray

- Use of incompatible metals (e.g., copper and aluminum without anti-oxidation treatment)

Solutions:

- Apply anti-corrosion grease to contact points.

- Use plug-in terminal blocks with gold-plated or tin-plated contacts for better corrosion resistance.

- Install protective covers or enclosures in harsh environments.

4. Incorrect Wire Insertion

Improper wire insertion can lead to poor contact and potential arcing.

Causes:

- Using wires that are too thick or too thin for the terminal

- Stripping too much or too little insulation

- Not fully inserting the wire into the terminal

Solutions:

- Follow the manufacturer’s guidelines for wire size and stripping length.

- Use ferrules for stranded wires to ensure a secure fit.

- Verify that wires are fully seated before tightening.

5. Mechanical Damage

Physical stress can crack or deform plug-in terminal blocks, compromising their functionality.

Causes:

- Excessive force during installation or removal

- Misalignment when plugging in modules

- Impact or bending of terminal blocks

Solutions:

- Handle plug-in terminal blocks carefully during installation.

- Use alignment guides or keying systems to prevent incorrect insertion.

- Replace damaged terminals immediately to avoid safety risks.

Preventive Maintenance for Plug-in Terminal Blocks

To maximize the lifespan and reliability of plug-in terminal blocks, regular maintenance is essential:

- Visual Inspection: Check for signs of overheating, corrosion, or loose connections.

- Cleaning: Remove dust and oxidation using a contact cleaner.

- Retightening:Periodically verify screw tightness, especially in high-vibration environments.

- Load Testing: Measure current flow to ensure terminals are not overloaded.

Conclusion

Plug-in terminal blocks offer a convenient and efficient way to manage electrical connections, but they require proper installation and maintenance to prevent common issues. So,Choosing high-quality plug-in terminal blocks and following best practices will significantly reduce downtime and enhance system performance.
