How To Use Spring Terminal Block Rightly

Spring terminal is a new type of terminal equipped with spring device, which has been widely used in lighting, elevator, instrument, power supply, chemistry and automobile power.。Push in terminal blocks represent a transformative approach to electrical connectivity, replacing screw-based clamping with spring force for faster, more reliable wiring. These components—classified among essential types of electrical connectors—use a stainless-steel spring to exert continuous pressure on inserted wires, maintaining secure contact without manual tightening. Ideal for applications ranging from industrial automation to building control systems, they have redefined efficiency in electrical installations.

A push in terminal block is a connector designed for rapid wiring. By inserting a stripped wire (typically 0.08 mm² or larger) into its chamber, a spring automatically clamps down, creating a gas-tight connection resistant to vibration and corrosion. Unlike screw terminals, this design eliminates torque-related damage and slashes installation time by 50%. Key components include Conductor: Phosphor bronze with a tin-plated finish for low resistance and corrosion resistance，Spring: Stainless steel for consistent clamping force，Insulation: UL94 V-0 rated PA66 nylon, capable of withstanding temperatures up to 105°C.

Top of Spring terminal block Manufacturers

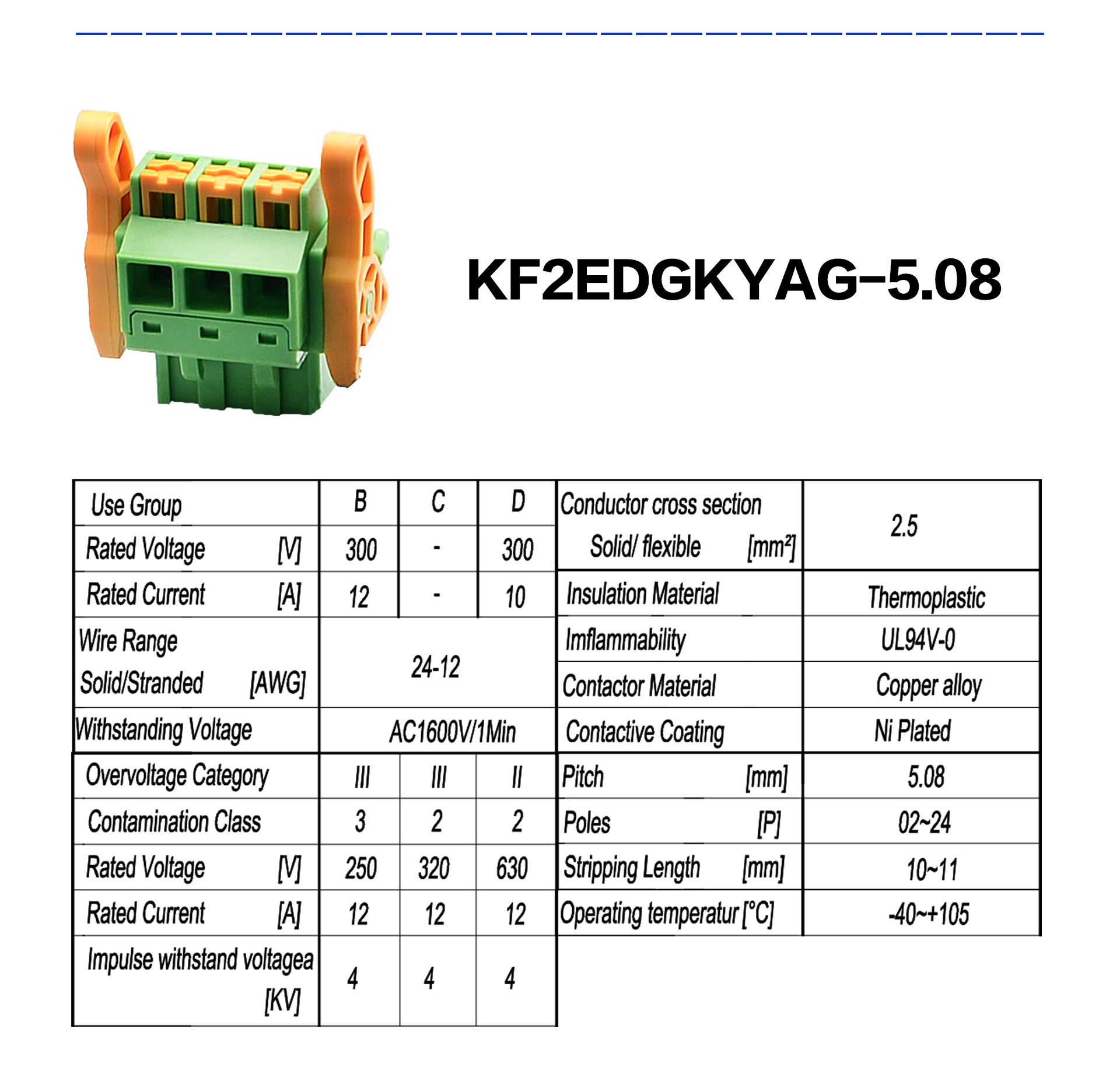

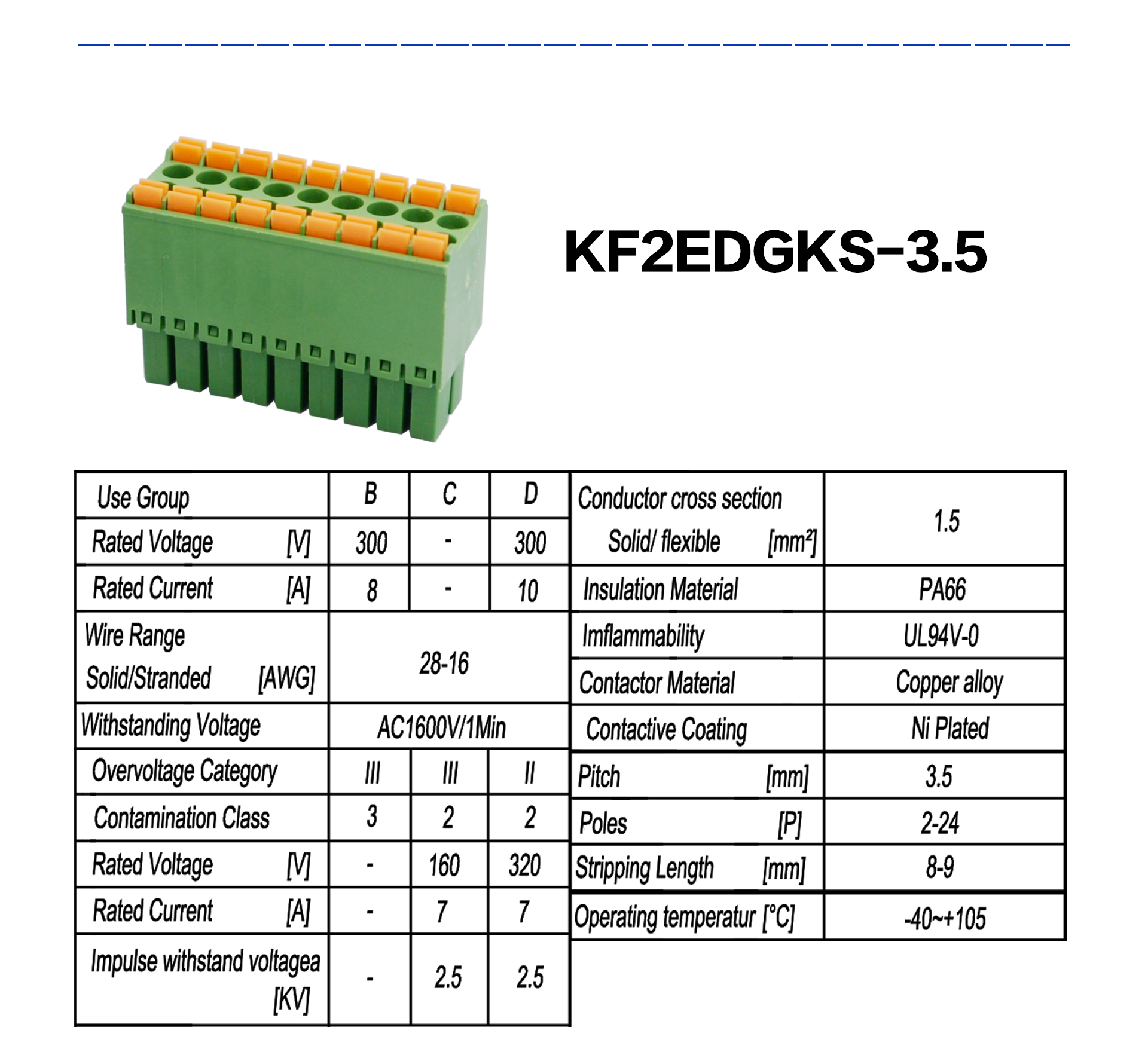

China’s wire terminal block market is dominated by specialized manufacturers blending innovation with cost efficiency:Degson : A pioneer with 20+ years of expertise, degson supplies spring terminals for Otis elevators and Siemens automation systems. Its MCS Series enables tool-free board-to-wire connections, widely used in elevator signal transfer，Shanghai Shanye Electronics Co;Ltd (KEFA BRAND ‘S branch) was established in 2017 year, a electronic components distributor, especially for terminal block and connector, which is famous for good quality and best servise with more than 50 countries from the world!  Lianjie : Specializes in customizable PCB-mounted terminals like the LS243-5.0, featuring anti-mismatching keys and test points for control cabinets.Others: Wago’s local partnerships and ABB’s hybrid SNK Series (combining screw and push in terminal functions) also hold significant market share。

Design Philosophy and Working Principles

The genius of the push in terminal block lies in its simplicity. Engineers prioritized three goals: speed, reliability, and versatility. When a wire is inserted:The spring deflects, generating restoring force to clamp the conductor.A “cage” of stainless steel evenly distributes pressure, preventing wire damage。For removal, a screwdriver depresses the spring release, freeing the wire instantly.This mechanism accommodates solid, stranded, or fine-stranded wires—making it universally adaptable across types of electrical connectors.

Key Advantages and Industrial Applications

Push in terminal blocks excel where speed and vibration resistance matter:

Elevators & Railways: degson’s MCS terminals withstand constant motion in elevator door controllers.

Solar/Energy: UV-resistant PA66 insulation ensures 20+ years of service in inverters.

Smart Buildings/smart home appliance: Shanye ‘s spring terminal block and pluggable terminal block are Simplified wiring accelerates installations for lighting/HVAC systems.Critical advantages include:

50% faster wiring than screws.Vibration resistance, proven in 10G shock tests.Maintenance-free operation.

Selecting the Right Push In Terminal: A Technical Checklist

Choosing a wire terminal strip requires multidimensional analysis:Material Science: Prioritize PA66 insulation (V-0 rated) over cheaper PVC for fire safety. For springs, 316 stainless steel resists fatigue.Electrical Performance: Verify current ratings (e.g., 24A for 5.0mm pitch blocks). Use tin-plated copper for minimal contact resistance (<1 mΩ).Mechanical Design: In high-density panels, opt for low-profile (10mm height) or 30°-angled versions to save space.Environmental Fit: For marine applications, specify gold-plated contacts to thwart salt corrosion.

Installation Guide: Avoiding Common Errors

Proper handling prevents 90% of wire terminal block failures:Strip Length: 9–10 mm for 2.5mm² wires. Too short reduces contact area; too long risks short circuits.Insertion: Use a slight twisting motion until a click confirms locking.Verification: Tug gently to ensure retention (force >40 N for 1.5mm² wires).Critical Tip: Never insert tinned wires—solder creep can degrade contact pressure over time

Troubleshooting Frequent Failures

Even robust wiring terminal blocks face issues:Overheating: Often caused by undersized wires. Example: Using 1.5mm² wire on a 16A block melts insulation. Solution: Match wire gauge to terminal current rating.Spring Failure: Deformation from over-insertion or >350°C soldering. Solution: Use terminals with visual access to verify spring position.Poor Contact: Stranded wires frayed during insertion. Solution: Pre-twist strands or use ferrules.

Future Trends: Opportunities and Challenges

The wire block market will grow to ￥16.5B in China by 2025, fueled by automation and green energy. Key developments include:Smart Terminals: Integrating sensors to monitor temperature/load in real-time.Sustainability: Bio-based plastics and lead-free plating to meet RoHS 3.0.
Hurdles: Miniaturization limits current capacity. New copper alloys (C7025) may enable 30A in 5mm widths.

Push in terminal blocks have evolved from niche connectors to industry standards. By balancing engineering ingenuity with practicality, they embody electrical connectivity’s future—one where speed, safety, and adaptability reign. if you want to get more details , pls visit our website  free ! www.cnsyelectronics.com!
