What Are PCB Terminal Blocks And Their Applications

As we know PCB terminal block is an electronic component that provides a secure, reusable connection point for wires to be attached to a printed circuit board (PCB). Acting as modular interfaces, these blocks bridge external wiring—carrying power, signals, or data—to the board’s circuitry. PCB terminal blocks are modular, insulated devices that mount on printed circuit boards (PCBs) and secure two or more wires together.  Terminal blocks are used to secure and/or terminate wires and, in their simplest form, consist of several individual terminals arranged in a long strip. Terminals are useful for connecting wiring to a ground or, in the case of electrical power, for connecting electrical switches and outlets to the mains

1 The Evolution of PCB Terminal Blocks

PCB terminal blocks originated as simple screw-type connectors in mid-20th-century electronics. Early designs prioritized basic functionality: metal clamps tightened by screws to secure wires onto boards. As industrial demand grew for reliability and safety, manufacturers like Phoenix Contact introduced insulated housings and standardized pitches like 5.08 mm pitch PCB terminal block, which became an industry norm for spacing between terminals to prevent arcing.

The 1990s saw a shift toward miniaturization and user safety. Spring-clamp technology eliminated screwdrivers, reducing installation time and loose connections. Innovations like Phoenix Contact’s FKDSO series (2011) combined screwless PCB terminal block convenience with high-current support (10A/300V). Today, hybrid designs like lever-actuated pluggable PCB terminal block ( Phoenix Contact’s LPTA6) support 40A currents and 600V ratings, catering to electric vehicles and solar inverters.

2 Design Principles and Structural Features

Modern terminal blocks balance electrical performance, mechanical resilience, and user ergonomics. Key design elements include：Contact Materials: Brass or copper alloys plated with tin or gold ensure low resistance (≤1.5 mΩ) and corrosion resistance. Würth Elektronik’s WR-TBL series, for instance, uses tin-over-nickel plating for stable connections in -40°C to +130°C environments.Housing: Thermoplastics like PA66 (UL94 V-0 rated) provide insulation and flame resistance. For high current PCB terminal block applications, materials like LCP (Liquid Crystal Polymer) withstand 130°C and 2000V dielectric strength.

Connection Mechanisms:Screw Clamps: Ideal for high vibration; torque up to 0.6 Nm (Delock’s 5.0 mm pitch blocks).

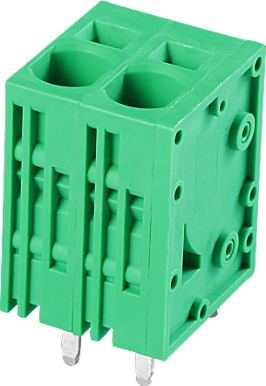

Push-in Springs: Tool-free insertion for solid or stranded wires (Phoenix Contact FKDSO).

Lever-Actuated: Combine quick release with high contact force (LPTA6 for 8AWG wires).Mounting Styles: Options like DIN rail mount PCB terminal block enable rapid integration into control cabinets, while through-hole or SMT PCB mounting suits compact devices.

3 Key Application Sectors

Industrial Automation (34% market share): Terminal blocks link sensors, PLCs, and drives in assembly lines. 2 position PCB terminal block units simplify I/O connections for safety relays, while DIN-rail-mounted types organize control panels.Energy/EV Infrastructure: High current PCB terminal block (up to 40A) connectors manage battery links in EV chargers and solar inverters. Phoenix Contact’s 600V-rated LPTA6 blocks are certified for photovoltaic systems.

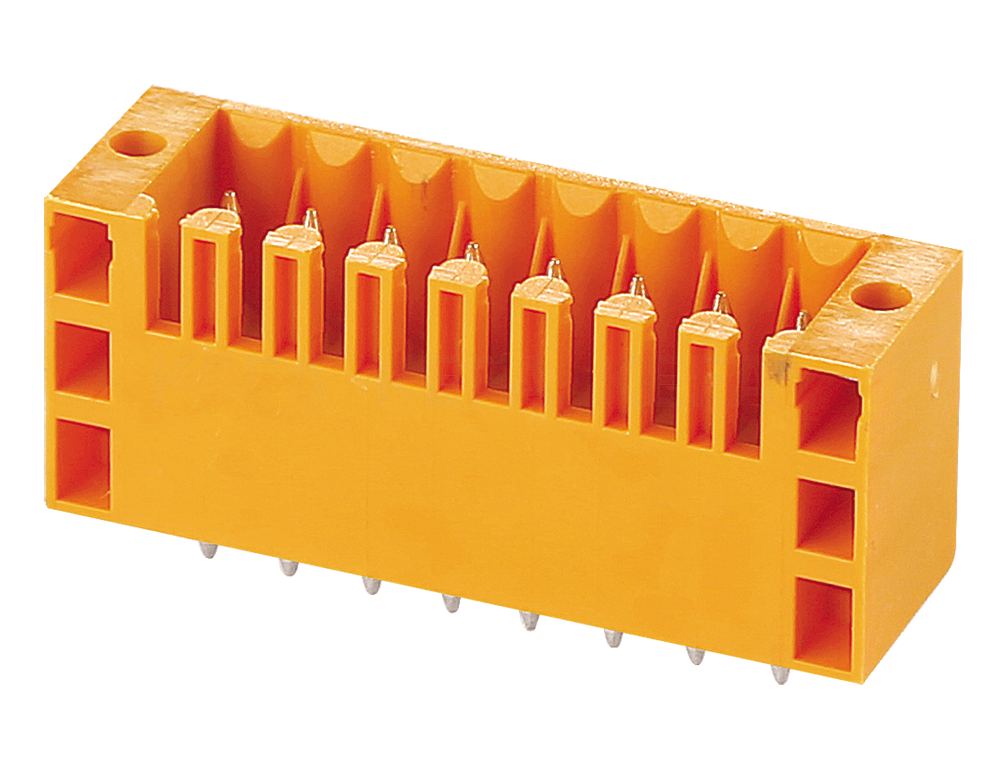

Telecommunications: Pluggable PCB terminal block headers enable hot-swapping of modules in routers and servers, minimizing downtime.

Consumer Electronics: Miniaturized blocks (3.81 mm pitch) fit smart home devices, providing field-serviceable wire points.

Table: PCB Terminal Block Applications by Sector

4 Critical Performance Parameters

Selecting terminal blocks requires evaluating electrical, mechanical, and environmental specs:Electrical，Current Rating: Ranges from 10A (general use) to 40A (high current PCB terminal block).Voltage Rating: 300V (UL Group D) for control gear; 600V for energy systems.Insulation Resistance: >500 MΩ (Delock blocks).

Mechanical:Wire Grip: Supports 0.14–6 mm² (26–10 AWG) wires. Spring clamps accept ferrules for stranded wires.

Pitch: 5.08 mm pitch PCB terminal block balances density and isolation; 3.81 mm suits compact designs.

Environmental:Temperature: -40°C to +130°C operating range (LCP housings)。

Certifications: UL 508, CE, RoHS, ISO1400S/ISO9001,TUV ,SGS,and REACH compliance.

5 How to Select the Right Terminal Block

Follow this decision framework:Current/Voltage Needs: For motors or inverters, use high current PCB terminal block (≥20A) with 600V ratings. Delock’s blocks sustain 18A (IEC) at 250V.Space Constraints: High-density boards need ≤3.81 mm pitch; standard layouts use 5.08 mm pitch PCB terminal block for accessibility.

Maintenance Requirements: Pluggable PCB terminal block or screwless PCB terminal block suits frequently modified systems ( prototypes).

Environment: Dusty/humid areas demand IP20-rated blocks; vibration-prone machinery requires screw clamps.

Regulations: Industrial automation requires UL/cULus; EU markets mandate CE

Table: Selection Criteria Cheat Sheet

6 Installation and Usage Guidelines，Proper installation ensures reliability:Soldering: Use wave soldering for through-hole blocks (e.g., Delock’s vertical types). Preheat to 100–120°C to avoid thermal shock.Wiring: Strip 8–9 mm of insulation. For spring clamps, insert wires vertically until they click. For screw types, torque to 0.4–0.6 Nm.DIN Rail Mounting: Snap blocks onto TS35 rails. Ensure levers face outward for accessibility。Combining Blocks: Interlock multiple units using side latches for multi-circuit distribution

7 Common Failures and Mitigation。Loose Connections: Cause overheating in screw terminals. Fix: Retorque screws annually or use spring clamps.Corrosion: Exposed copper contacts degrade in humidity. Solution: Gold-plated terminals or conformal coating。Solder Joint Fractures: Vibration cracks joints. Mitigation: Use strain relief brackets or SMT blocks with reinforced pads.Miswiring: Inserting wires into tension sleeves. Prevention: Blocks with color-coded levers or guide rails (e.g., Phoenix Contact MKDSN)

8 Top Regional Markets。Asia-Pacific (39% revenue): Driven by industrial automation in China and EV production in Japan/Korea。North America (27%): Demand for renewable energy systems and Industry 4.0 upgrades.Europe (20%): Stringent safety norms (VDE, CE) boost adoption of certified blocks like Würth’s VDE-approved series.

9 Future Trends and Opportunities。Miniaturization: 2.54 mm pitch blocks for wearables and IoT devices.Smart Integration: Blocks with embedded sensors for predictive maintenance ( temperature monitoring).High-Voltage EV Systems: High current PCB terminal block supporting 800V+ architectures.Sustainable Materials: Bio-based plastics (PA610) to meet carbon-neutral goals。The PCB terminal block market, projected to reach $3.8B by 2030, will be shaped by automation, electrification, and smarter designs.

Tips: When sourcing blocks, prioritize suppliers with UL/VDE certifications (Phoenix Contact, WAGO, TE Connectivity，KEFA ELECTRONICS,SHANYE ELECTRONICS) for high-risk applications like energy or transport.If you need to get more ,welcome to visit our website: www.cnsyelectronics.com ,will contact you soon !
