What is a terminal connector?

Terminals and connectors are various types of electrical wire components used to connect a wire or cable to an electrical system or terminate the end. A terminal connector (also called a terminal block connector) is an essential electrical component that provides secure, organized connections between wires or cables in industrial, automotive, and consumer electronics. These devices ensure reliable power and signal transmission while simplifying maintenance and troubleshooting.

This guide explores What is a terminal connector? And terminal block connector types, installation methods, key applications, and how to choose the right one for your project—whether you're sourcing from Terminal Block Princess Auto, Canadian Tire, or global manufacturers.

1. A terminal block connector is a modular, insulated block that joins multiple wires together without soldering. It consists of:

Conductive metal strips (usually copper or brass)

Insulating housing (plastic, ceramic, or polymer)

Clamping mechanism (screw, spring, or push-in)

Housing: PA66,PBT,PPC ,UL94V-0

Key Standard: Terminal blocks comply with IEC 60947-7-1 for electrical safety.

2.  Terminal Block Connector Types

2.1 Screw Terminal Blocks

How it works: Wires are secured under tightened screws

Best for: High-current applications (e.g., industrial control panels)

Example: Phoenix Contact PT 2.5

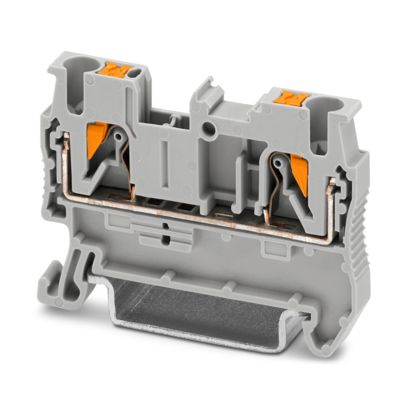

2.2 Spring Clamp Terminal Blocks

Advantages: Tool-free installation, vibration-resistant

Common in: Building automation (e.g., WAGO 221 Series)

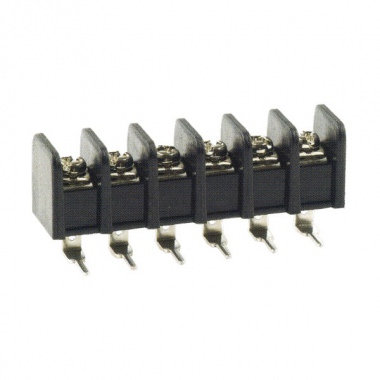

2.3 Barrier Strips

Features: Metal partitions isolate high-voltage connections

Used in: Power distribution (up to 1000V)

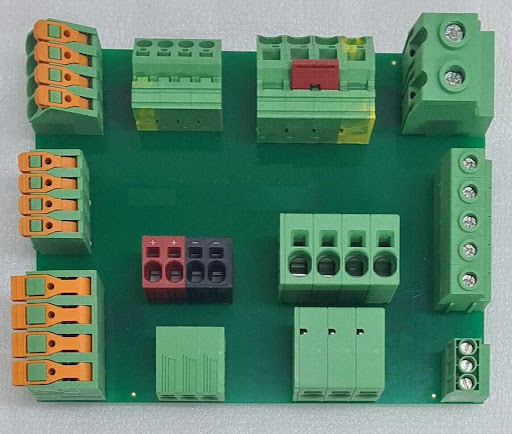

2.4 PCB Terminal Blocks

Mounting: Soldered directly to circuit boards

Pitch options: 2.54mm,3.5mm, 5.08mm, 7.5mm,7.62mm,10.16mm,12.7mm,15.0mm,etc

Type Current Rating Wire Size Top Brands

Screw Terminal Block 5A Up to 100A 0.5–35mm² Weidmüller, TE

Spring Clamp 1–24A 0.14–4mm² WAGO, SUPU

Barrier Strip 15–200A 4–300mm² Molex, Amphenol

3. How to Install Terminal Connectors?

3.1 Step-by-Step Installation

Turn off power and verify with a multimeter

Strip wires (6–9mm for screw terminals)

Insert conductor:

Screw type: Tighten to specified torque (e.g., 0.5 N·m for M3 screws) with “+” type screws and “-” type screws ,

Spring type: Press lever, insert wire, release,push-in ,

Tug test: Ensure secure connection

Safety Tip: Use ferrules for stranded wires to prevent fraying.

3.2 Common Mistakes to Avoid

Over-tightening screws (strips threads)

Mixing wire metals (causes galvanic corrosion)

Ignoring IP ratings in humid environments

4. Key Applications of Terminal Blocks

4.1 Industrial Control Panels

Requirement: DIN-rail mountable blocks (EN 60715 standard)

Example: Siemens SIRIUS 3RA

4.2 Automotive Wiring

Specialty: Vibration-proof designs (e.g., TE Connectivity MCP series)

4.3 Renewable Energy Systems

Solar combiner boxes: IP67-rated blocks for outdoor use

4.4 Consumer Electronics

PCB terminals: Miniature 2.54mm pitch connectors

5. Terminal Block Buying Guide

5.1 Selection Criteria

Current/voltage rating (add 25% buffer)

Wire compatibility (solid vs. stranded)

Environmental factors (temperature, humidity)

Certifications (UL, IEC, RoHS)

5.2 terminal block buying guides

If you considering buy from germany, you can consider phoenix brand ,

https://www.phoenixcontact.com/zh-cn/

Or wago ,

Of course , if you want competitive brand from china

You can buy from ours : shanghai shanye electronics co ;ltd

6. Top Terminal Block Manufacturers

Phoenix Contact (Germany) - High-reliability industrial blocks

WAGO (Germany) - Spring-clamp innovators

TE Connectivity (USA) - Automotive/EV specialists

Conclusion

Terminal connectors are vital for safe electrical connections across industries. Whether you need a screw terminal block for factory equipment or PCB terminals for electronics, choosing the right type ensures system reliability. Always prioritize:

✅ Correct current rating

✅ Proper installation

✅ Quality certifications

For technical specifications, consult manufacturer datasheets or visit IEC standards portal.

FAQ

Q1: Can I reuse terminal blocks?

A: Usually,Screw types can be reused 500 times; spring clamps may wear out after disconnection.other models , such as pluggable terminal blocks can up to 1000 times for reusing !

Q2: What’s better: screw or spring terminals?

A: Screws for high current (>20A), springs for vibration-prone applications. you can choose specific models according to your project requests

Q3: Does your company supply free samples for test ?

A: Of course yes, our service is very better and considerable for every customer

Q4: What's your MOQ ?

A: 50-500-1000PCS , we can coordinate with your actual need !

Q5: What's your delivery time for sample and bulk ?

A: usually , we have stock for you , sometimes  need to produce , but it's very fast !  3days -2weeks

Q6:  Do you have any certificates ?

A:of course ,we have UL,VDE, SGS. ROHS , CE ,CQC etc!
