What Is The Meaning of PVC Terminal Block in Electrical Terms

With the rapid advancement of electronic technology development , terminal block manufacturers continuously develop and designed so many kinds of new Terminal Block Specification to enhance competitiveness and meet market demands.

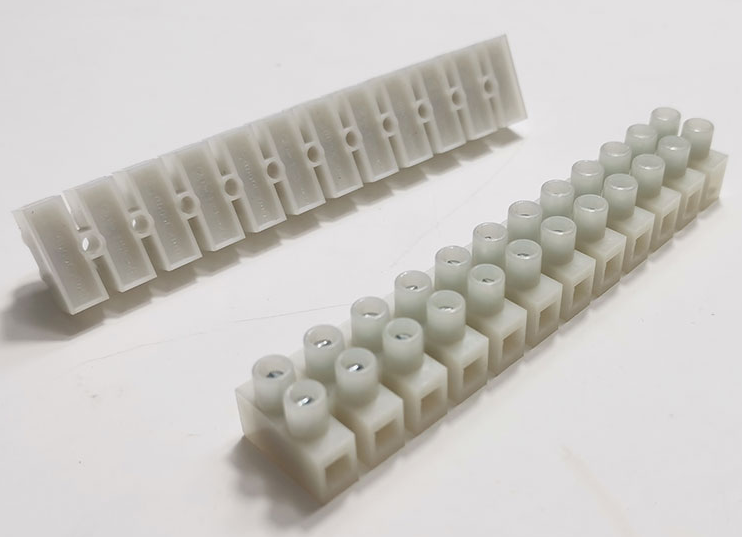

PVC Terminal Connectors also called Wire Connector Strip- A through-type connector strip (also known as TB connector or terminal cable connector) simplifies wire connections. It consists of metal plates enclosed in insulated plastic PA66 housing with screw-secured terminals at both ends. Unlike soldering or twisting wires, these terminal connector types allow quick and secure connections/disconnections in any time you want .

Key Features of PVC Terminal Connectors

• PA66 insulation (UL 94-V0 flame-retardant) with temperature ratings: T110/T140 (IEC) or 105°C (UL)

• Nickel-plated copper alloy terminals with stainless steel barriers prevent wire breakage

• Recessed screws and tubular terminal block materials enhance safety against short circuits

• Modular 12-circuit design – divisible into smaller segments

• Compatible with 4-wire electrical connectors (0.5mm²–16mm² wire cross-sections)

• Pitch options: 8.2mm–16.5mm (forked/spring contact types)

• Complies with terminal block specifications: IEC60998, UL1059/T13140

Applications of PVC Connector Strips

Ideal for:

✅ LED lighting & fixtures

✅ Smart home systems

✅ Building electrical wiring (tb in electrical)

✅ Industrial control panels (wire terminal connectors)

Why Choose Our TB Connector?

As a leading terminal block manufacturer, Shanye electronic co;ltd provides many newest terminal blocks and connector ,especially pluggable screw terminal,pvc connector strips that ensure reliable through-connections while meeting international safety standards.

Our electrical terminal connectors approve UL,VDE, SGS,ROHS,CE,CQC ISO9001/ISO14001  certificates . with very high quality and competitive price ! We can supply ODM/OEM service , any color can customize for your request! Moreover , our delivery time is very fast , just need 1-4weeks !

So, you no need to prepare big stock , and it will not occupy your warehouse !

Hereby hope we can have chance to cooperate together !
