Views: 88 Author: Site Editor Publish Time: 2025-07-24 Origin: Site
Terminal block connectorsare the superstar heroes of electrical systems, enabling secure, organized, and adaptable wiring across countless industries. Proper wiring isn’t just about connectivity—it’s about safety, efficiency, and system longevity. In this article, you’ll learn industry-specific wiring techniques for 8 kinds of critical applications fields, using real-world examples and actionable best practices.
Why does Terminal Block Wiring Demands Field-Specific Expertise
Terminal blocks create modular connection points between wires, electronics components, or systems. While the core principles remain consistent, voltage/current requirements, environmental hazards, and operational demands vary drastically by field. A mistake in torque tolerance or wire preparation can trigger failures ranging from signal noise to catastrophic short circuits. This is a no-ignored problem for engineers .
Terminal block wiring in Machinery control panels, conveyor systems, heavy equipment.Wiring Protocol:Strip 8-10mm of insulation from THHN/MTW copper wire (12-28 AWG).Torque Control: Tighten screw terminals to 0.8 N·m using a calibrated driver—over-tightening cracks strands, under-tightening causes arcing.Grounding: Dedicate a green/yellow-striped ground bar with independent lugs.Critical Insight: In metal enclosures, use nylon barrier terminal blocks to prevent grounding faults. Always install transient voltage suppressors near motor starters.Why Proper Wiring so Matters?Prevents production downtime caused by vibration-induced loosening,Reduces arc flash risks in 480V power circuits.Ensures compliance with NFPA 79 (Industrial Machinery Standards),Choose high-quality terminal block to use is very important for any customers!
Q: How often should I retorque industrial terminal blocks?
A: Inspect every 3 months. Retorque if thermal imaging shows >10°C delta from baseline.
Q: What terminal types prevents corrosion in chemical plants?
A: Nickel-plated brass terminals with IP66 housings. Avoid aluminum in chlorine environments

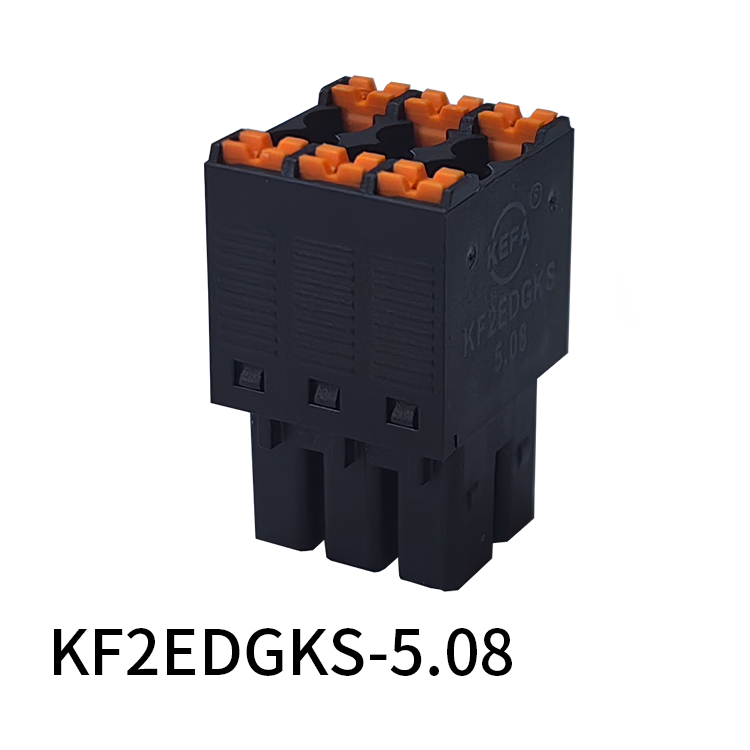

Terminal block wiring in Robotic arms, assembly line controllers, sensor networks.Wiring Protocol,Signal Separation, Use dual-level terminal blocks—top row for 24VDC I/O signals, bottom for 120VAC power.Shielding: Ground shield drains of analog sensor cables (4-20mA) at one end only to prevent ground loops.Labeling: Apply heat-shrink labels with wire origin/destination.Automation-Specific Tip: For servo motor feedback cables, use ferrules on stranded wires to maintain contact integrity under vibration.Consequences Errors:EMI interference causing false sensor triggers,Cross-talk between digital/analog signals,Non-compliance with ISO 13849 /ISO14001/ISO9001 safety requirements.
Q: How to prevent false triggers in 4-20mA sensor circuits?
A: Use isolated terminal blocks with 1.5kV dielectric strength between channels.
Q: What wire preparation method suits automation vibration?
A: Always crimp ferrules on stranded wires. Avoid tinning with solder - it cracks under vibration. However, there are some specific model of terminal blocks wiring no need feerules .This is according to the quality &function&technology request of terminal blocks.
Terminal block wiring in Panelboards, subpanels, transformer connections.
Wiring Protocol:Phase Management: Group phases by color (Black-Red-Blue for L1-L2-L3) and sequence terminals left-to-right.Bus Bar Integration: Use feed-through terminal blocks with integrated bus bars for parallel circuits.Derating: For 100A+ circuits, increase wire gauge by 20% if ambient temperature exceeds 40°C.Critical Safety Check:Verify torque values monthly with a thermal imager—hotspots indicate loosening.
Terminal block wiring in Chiller controls, thermostat wiring, VFD connections.Unique Challenges: Condensation, wide temperature swings (-20°C to +70°C), refrigerant exposure.Wiring Best Practices,
Corrosion Prevention: Specify nickel-plated terminals with silicone-sealed housings,Wire Flexibility: Use stranded copper with 30% extra length for thermal expansion.VFD Wiring: Separate motor leads from control cables by ≥200mm; use ferrite cores on I/O lines.Field Fact: 68% of HVAC board failures stem from corroded terminal blocks in condensate drip zones.
Q: How to repair corroded terminals block in AC units?
A: Cut damaged section directly, use waterproof splice connectors, and install drip shields above blocks.
Q: What does terminal block material works best in coastal HVAC systems?
A: Marine-grade tinned copper with silicone-sealed boots. Replace every 3 years.
Terminal block wiring in Starter coils, overload relays, reversing contactors.Critical Steps:Torque power terminals to 1.2 N·m (for 10 AWG wires),Install fuse-disconnects within 1.8m of terminal blocks.Apply anti-oxidation compound on aluminum windings.
Q: Why do my motor terminal blocks overheat during startup?
A: Undersized for inrush current. Select blocks rated for 150% of FLA (Full Load Amps).
Q: How to wire multi-speed motor terminals?
A: Use partitioned terminal blocks with physical barriers between speed circuit voltages.
Terminal block wiring in I/O rack interfacing, HMI connections, network modules.
Wiring Precision Checklist:Use 22-26 AWG shielded cable for digital inputs, Isolate 120VAC outputs with opto-coupled terminal blocks, Implement Class 2 circuits (<30V) for safety-limited power
Common Mistake:
Daisy-chaining DC commons → causes ground potential differences. Instead, use star-point grounding.
Q: How to troubleshoot noisy analog inputs?
A: 1) Verify single-point shield grounding 2) Check for crossed voltages 3) Install signal isolators.
Q: Can I mix 24VDC and 120VAC in same terminal block?
A: Only if using dual-compartment terminal blocks with 4mm+ separation barriers (UL 508A requirement).
Termianl block wiring in PV string combiners, inverter inputs, battery banks.
High-Voltage Protocols (600-1500VDC):
Parameter | Requirement |
Wire Type | PV Wire (RHH/RHW-2) |
Polarity Marking | Red (+) / Black (-) sleeves |
Arc Protection | Class T fuses per string |
Critical Safety Note:
Always disconnect both PV+ and PV- simultaneously—floating DC voltage can exceed 800V!
Q: What torque for 10 AWG PV wire in combiners?
A: 0.6 N·m for copper, 0.8 N·m for aluminum. Retorque after 1 year thermal cycling.
Q: How to prevent arcing in DC terminals?
A: Use terminal blocks with arc chambers, apply oxidation inhibitor, and maintain flat contact surfaces.
Terminal block wiring in EV battery modules, charging ports, lighting harnesses.

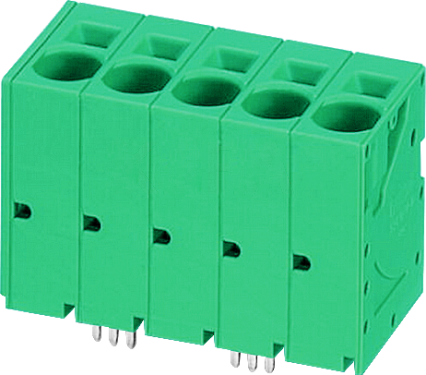

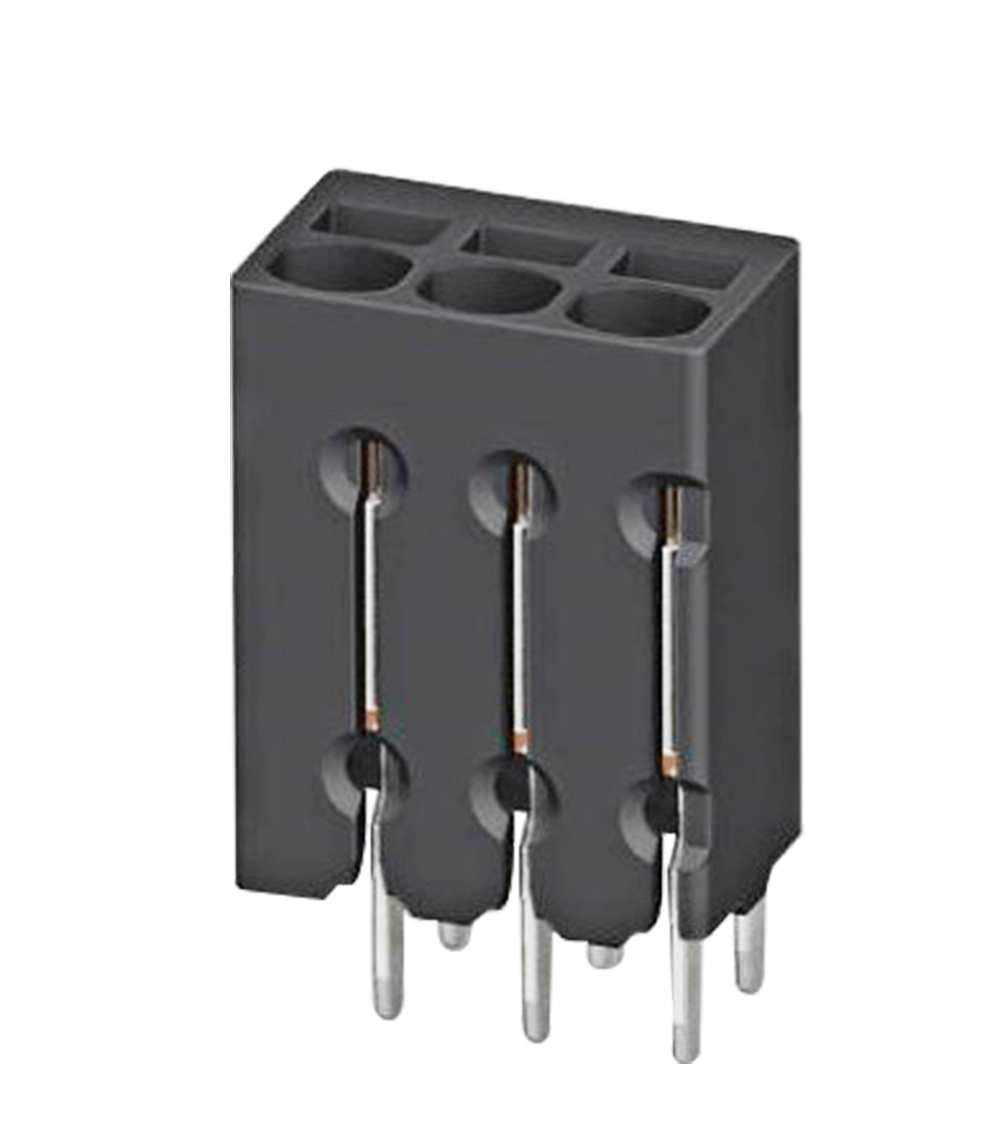

Vibration & Environmental Defense Terminal Types: Spring-cage connectors (WAGO 221/KEFA(SHANYE) Spring type serious KF206/KF205/KF208,etc) Sealing: IP67-rated housings with silicone grommets.Wire Securing: Adhesive-lined heat shrink every 150mm.EV-Specific Rule: High-voltage orange cables (≥60VDC) must be spaced ≥15mm from low-voltage lines.
Q: How to secure wires in automotive terminal blocks?
A: Use strain relief clamps within 30mm of entry and adhesive-lined shrink tubing.
Q: What terminal material handles engine heat?
A: Nickel-plated copper (150°C rating). Avoid zinc-plated near exhaust systems.
Regardless of application, follow these non-negotiables
Torque Verification: Use a calibrated screwdriver—never "feel" tightness
Strand Control: Always crimp ferrules on fine-stranded wires
Stress Relief: Secure cables ≤50mm from terminal entry points
Post-Installation Test:Megger test (>100MΩ at 500VDC),Continuity check under load
Why Industry-Specific terminal block connector Wiring so Matters?
Industrial: A loose 480V terminal causes $18k/hr in production losses
Solar: Arc faults in PV combiners account for 23% of system fires
Automotive: Vibration-induced failures lead to 300% warranty cost increases
