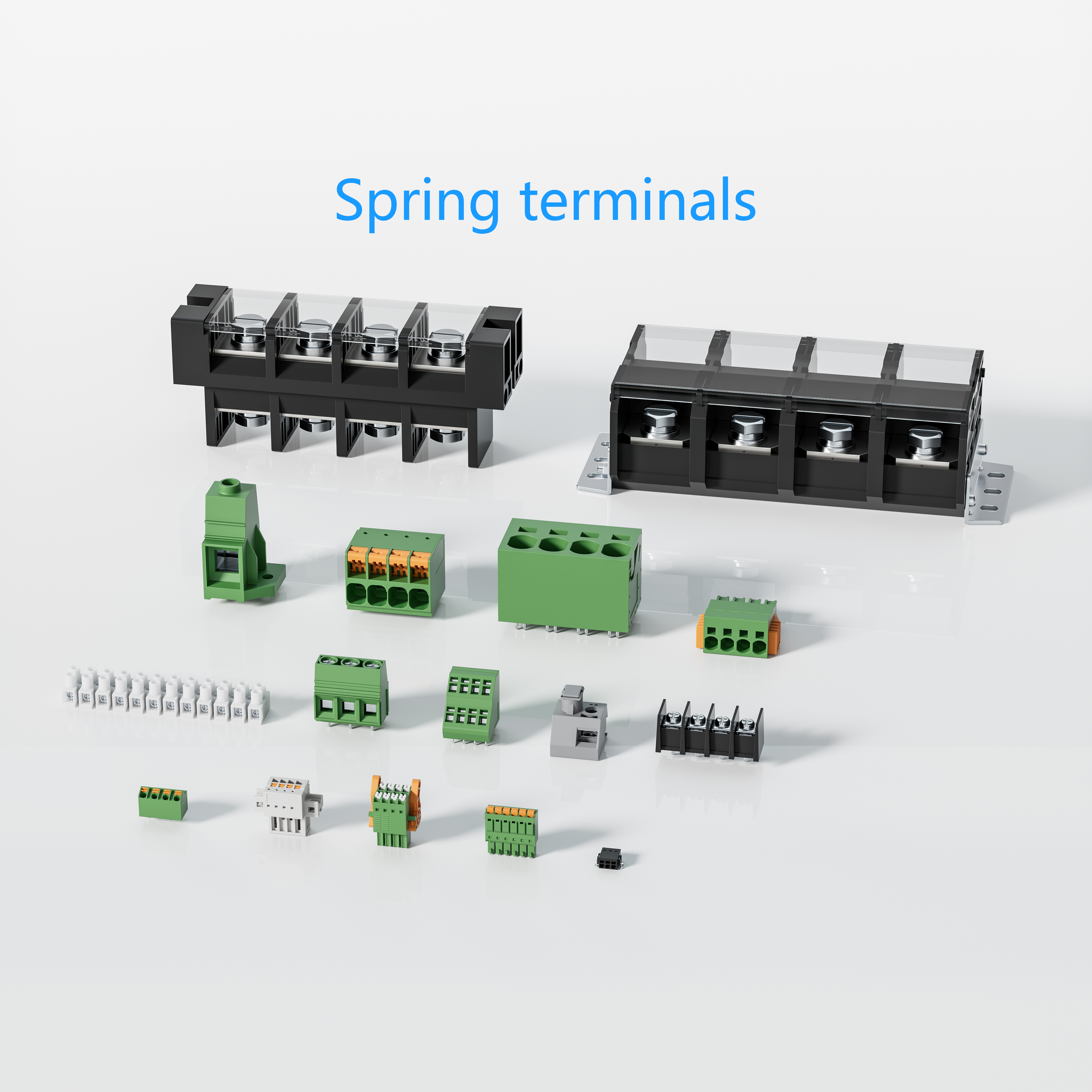

Spring connectors, also known as spring-loaded connectors or pogo pins, are electrical connectors that use spring-loaded contacts to establish a temporary electrical connection. These connectors are commonly used in applications where repeated connections and disconnections are required, such as in battery charging docks, test fixtures, and electronic devices with removable modules.
1. How To Use Spring Load Terminal Block To Save 30% Cost
2.How High-Performance Terminal Blocks Become The Unsung Heroes of Charging Infrastructure
3.What Is The Purpose of The High Current Terminal Block
4.Do You Know Top Terminal Block Manufacturers Ranking
5.How To Install Terminal Blocks Safely
6.Do You Really Understand Terminal Blocks?
7.Common Issues and Solutions for Plug-in Terminal Blocks
How do spring connectors work?

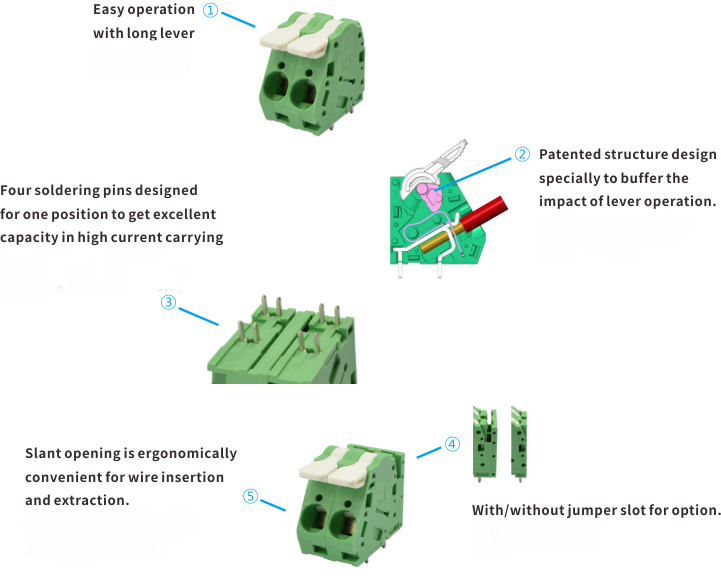

Spring connectors consist of a housing or receptacle containing one or more spring-loaded pins or contacts. When a mating connector or contact is inserted into the housing, the spring-loaded pins compress and make contact with the mating connector, establishing an electrical connection. When the mating connector is removed, the spring-loaded pins return to their original position, breaking the electrical connection.
The typical cable used with spring connectors depends on the specific application and design requirements. Here are some examples of typical cables used with spring connectors and their applications:
Applications: Used in compact electronic devices where space is limited and a low-profile connection is required, such as in laptops and smartphones.
Description: These cables consist of multiple conductors arranged in a flat, ribbon-like form, making them suitable for applications where flexibility and compactness are important.
2. Flexible PCB Cable:
Applications: Commonly found in cameras, foldable phones, and other electronic devices with movable or detachable components.
Description: Thin, lightweight, and flexible cables used in applications where a flexible connection is needed between circuit boards or components.
3. Coaxial Cable:
Applications: Used in RF and high-frequency applications, such as test fixtures, RF test equipment, and wireless communication devices.
Description: These cables consist of a central conductor surrounded by an insulating layer, a conductive shield, and an outer insulating jacket, providing reliable electrical connections.
4. Multiconductor Cable:
Applications: Suitable for connecting multiple signals or power lines in applications like industrial control systems and medical devices.
Description: Flexible insulation and stranded conductors are used in various configurations, including twisted pairs, shielded cables, and flat ribbon cables, to accommodate different signal and power requirements.
No, spring connectors are typically used for short-distance connections within electronic devices or between circuit boards. They are not generally used for long cable runs due to their design, which is optimised for temporary connections and low-profile applications.
Spring connectors are crucial for applications requiring quick, reliable connections and disconnections. Their spring-loaded design ensures consistent contact pressure, providing reliable electrical connections even in environments subject to vibration and movement.
Parameter Description Typical Value/Range
Contact Material | - Gold plating (anti-oxidation, low contact resistance) | Gold thickness: 0.5~3µm |
Durability | Rated mating cycles (failure defined as contact resistance >100mΩ) | 50,000~100,000 cycles |
Environmental Resistance | ||
IP Rating | Ingress protection level (IEC 60529) | IP67 (selected models) |
Operating Temperature | Storage/operating range | -40°C to +85°C |
Corrosion Resistance | Salt spray test standard ( MIL-STD-883) | 48 hours no corrosion (gold-plated) |
Mechanical Properties | ||
Contact Force | per-pin spring pressure | 50~300gf |
Stroke Distance | Maximum spring compression travel | |
Electrical Performance | ||
Contact Resistance | Initial value (gold-plated) | ≤20mΩ |
Current Rating | Current capacity per contact | 0.5~5A (size-dependent) |
Insulation Resistance | Between contacts (DC 500V) | ≥100MΩ |
Spring connectors offer several advantages:
Ease of Use: Quick, tool-free connections and disconnections.
Durability: Designed for repeated connections without degradation in performance.
Compact Design: Ideal for applications where space is limited.
Versatility: Compatible with various cable types and electrical signaling protocols.
Spring connectors present several critical signal integrity challenges when used in high-frequency (HF) applications such as RF systems and high-speed digital circuits. These challenges primarily stem from their mechanical design and material properties, which can significantly impact electrical performance at elevated frequencies.
1. Impedance Mismatch and Reflections
The spring mechanism inherently creates small air gaps and contact resistance variations that lead to impedance discontinuities. These discontinuities cause signal reflections, resulting in waveform distortion and potential data errors. The problem worsens as frequency increases, making proper impedance matching crucial for frequencies above 1GHz.
2. Frequency-Dependent Losses
Two primary loss mechanisms affect performance:Insertion loss increases due to contact resistance and skin effect,Dielectric losses become significant in the connector housing material
The combination of these effects can cause substantial signal attenuation, particularly in multi-GHz applications.
3. Parasitic Effects
The spring structure introduces unwanted:Inductance (typically 0.5-2nH per contact),Capacitance (0.1-0.5pF between adjacent contacts)
These parasitics create low-pass filter effects that limit bandwidth and cause phase distortion in high-speed signals.
4. Electromagnetic Interference
Spring connectors are particularly susceptible to:Crosstalk between adjacent contacts,EMI radiation due to imperfect shielding
Ground loop issues from inconsistent return paths
5. Mechanical Reliability Concerns
Vibration and repeated mating cycles can cause:Intermittent connections leading to signal dropouts,Gradual degradation of contact surfaces
Changes in contact pressure affecting impedance
Mitigation Strategies
To maintain signal integrity:Use gold-plated contacts with controlled thickness (≥1μm).Implement impedance-matched designs (50Ω/75Ω)
Select low-loss dielectric materials for housings
Incorporate RF shielding when necessary
Specify high-contact-force designs (>200gf)
Consider hybrid solutions (spring + permanent contact) for critical paths
A: While spring connectors are durable (typically 50,000–100,000 mating cycles), their reliability depends on:Contact material (gold-plated for corrosion resistance)Environmental conditions (dust/moisture may degrade performance)Mechanical stress (vibration can cause intermittent connections)
For critical applications, periodic inspection is recommended.
A: They can, but with limitations:
✔ Pros: Spring pressure maintains contact during minor vibrations
❌ Cons: Strong vibrations may cause micro-disconnections
Solution: Use high-contact-force designs (>300gf) or secondary locking mechanisms.
A: Primary causes include:Oxidation (if non-gold-plated contacts are used).Wear from repeated insertions
Contamination (dust, fluids)
Prevention: Gold-plated contacts + sealed designs (IP67) for harsh environments.
A: Limited suitability:Typical range: 0.5–5A per contact
Challenges: Heat buildup may weaken springs
Alternative: For >5A, consider screw terminals or welded contacts.
A: Common solutions:Connectors with positive-lock mechanisms (latches)Strain relief for cables,Avoid placing connectors in tension-prone areas
A: Top reasons:Over-compression (exceeding maximum stroke distance)Using undersized wires (causes poor contact)Exposure to corrosive chemicals
Mitigation: Follow manufacturer’s specs for wire size/insertion force.
A: With limitations:Impedance mismatch may cause reflections (>1GHz)Parasitic inductance/capacitance affects signal integrity
For RF applications: Use specialized RF spring connectors with shielding.
A: Yes, but damaged wires may leave debris in the contact chamber Repeated reinsertions reduce contact force
Q: What’s the #1 mistake users make with spring connectors?
A: Inserting stranded wires without proper preparation.
Wrong: Frayed strands or incomplete insertion.
Right: Twist strands tightly or use ferrules for clean contact.
